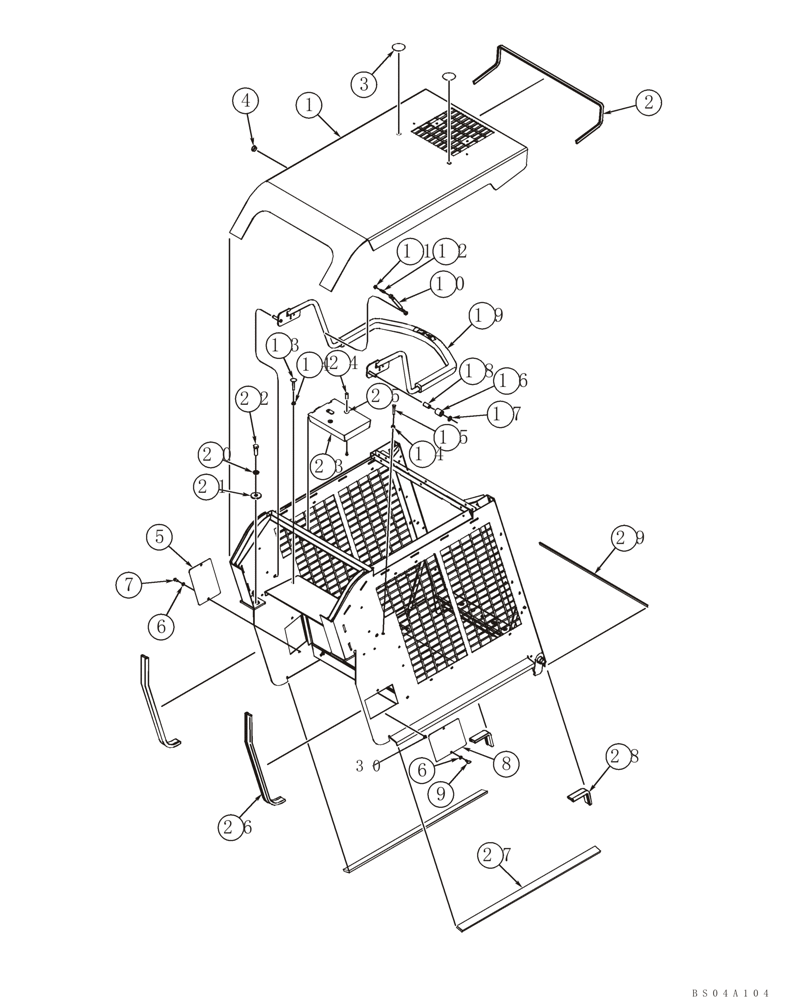

Запчасти Case IH 60XT (09-25) - CANOPY, ROPS - FRAME AND SEAT BAR (09) - CHASSIS

392236A8

Frame; ROPS; Machinery Item; For Service Order 434790A1

1шт.

1

434790A1

FRAME

Kit, ROPS; Incl. Decals Figure 09-57, Ref. 6 and Fig. 09-60, Ref. 1 and 6

1шт.

2

378351A1

PROTECTION STRIP

Trim, Canopy Edge

1шт.

3

293887A1

COVER

70 mm, 2-3/4 in.; Lift Hook Hole

2шт.

4

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

5

380859A1

PLATE

Heater, Fresh Air

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

8

376154A1

PANEL

Right Hand Engine Closure

1шт.

9

408117A2

THUMB SCREW,M8 x 1.25 x 15mm

M8

2шт.

10

374073A4

GAS STRUT

Cylinder; Seat Bar Incl. 87418011

1шт.

10

374073A5

GAS STRUT

Cylinder; Seat Bar Incl. 87418011

1шт.

87418011

CONNECTION

End; Gas Spring; Not Illustrated Separately

1шт.

87051003

BALL JOINT

End; Gas Spring; Not Illustrated Separately; Replaces 87418011

1шт.

11

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

12

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

13

379615A1

BOLT

3/8 x 2-1/2

1шт.

14

231-5146

FLANGE NUT,3/8"-16

2шт.

15

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

16

374161A2

BUSHING

Seat Bar Pivot

2шт.

17

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

18

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

19

396716A1

BAR ASSY.

1шт.

20

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

21

391703A2

WASHER,16.67mm ID x 55mm OD x 6.35mm Thk

5/8 x 2-1/8 x 1/4

2шт.

22

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

23

R46464

CASE

Box; Operator Manual

1шт.

R46465

CABLE,36mm L

1шт.

R46463

SCREW,0.18" x 0.75"

1шт.

24

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

3шт.

25

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

26

394745A2

SEAL,800mm L

ROPS Wing; European models, North American Models With Heater

2шт.

27

378353A1

WEATHERSTRIP,44.5mm W x 1070mm L x 11.1mm Thk

ROPS Wing; European models, North American Models With Heater

2шт.

28

381175A2

SEAL

Front Corner; European models, North American Models With Heater

2шт.

29

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate; European models, North American Models With Heater

1шт.

30

442856A1

SEALING WASHER,7.11mm ID x 12.7mm OD x 0.79mm Thk

Nylon

2шт.
