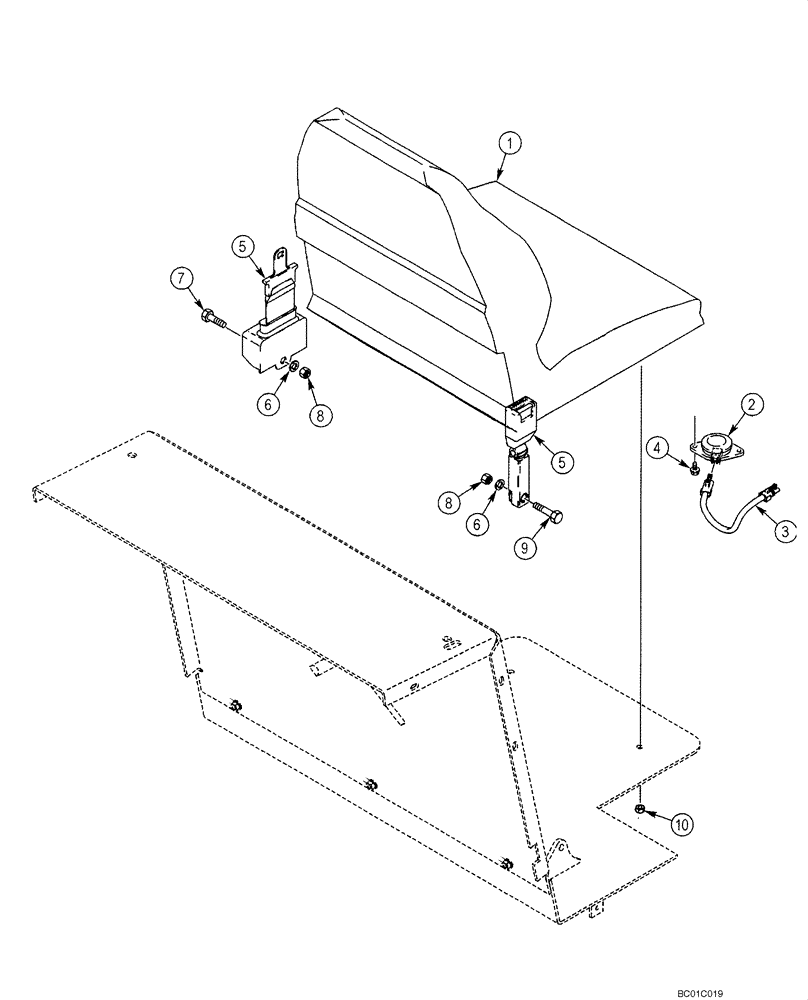

Запчасти Case IH 60XT (09-23) - SEAT - MOUNTING, NON-SUSPENSION (09) - CHASSIS

1

400680A1

SEAT

Includes Flange Mounted Operator Presence Switch 242306A2

1шт.

1

87405117

SEAT

Includes Snap-In Style Operator Presence Switch 86603490

1шт.

2

242306A2

SWITCH

Operator Presence, 2 Bolt Flange Mount

1шт.

2

86603490

SWITCH

Operator Presence, Snap-In Style

1шт.

3

302137A2

HARNESS

Seat; Two Connector; See Figure 04-15

1шт.

4

NSS

NOT SOLD SEPARAT

Bolt

4шт.

5

249116A1

SAFETY BELT ,50.80 mm W

2, Includes 6

1шт.

6

NSS

NOT SOLD SEPARAT

Washer

2шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

8

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

9

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

10

832-41408

NUT,M8 x 1.25, Cl 10

M8

4шт.
