Запчасти Case IH 60XT (09-10) - CHASSIS (09) - CHASSIS

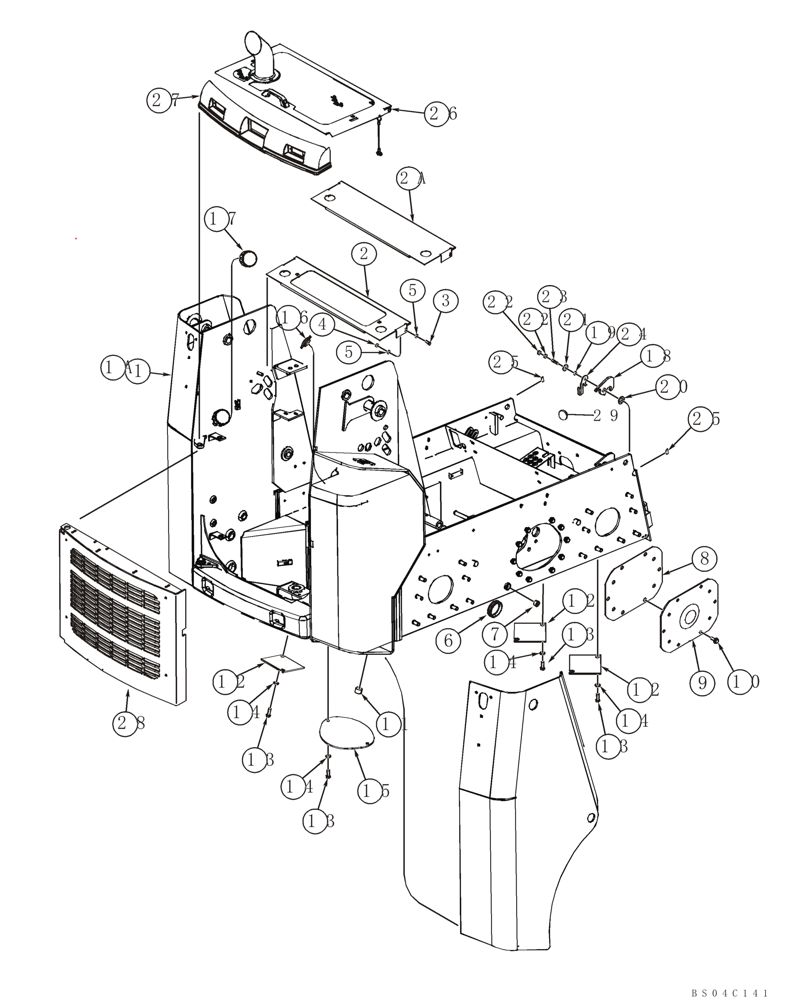

Схема запчастей Case IH 60XT - (09-10) - CHASSIS (09) - CHASSIS
5
13
27
28
12
24
9
14
11
bs04c141
2a
22
14
1a
8
21
5
12
13
26
4
7
14
19
13
15
22
29
25
18
1
10
23
14
6
2
12
17
3
13
25
16
20

Артикул

Название

Примечание

Количество

383931A4

Used On 60XT; Machinery Item, For Service Order 434797A1; Incl. D88429

1шт.

383933A4

Used On 70XT; Machinery Item, For Service Order 434861A1; Incl. D88429

1шт.

D88429

CAGE

14-16шт.

254799A1

STUD

Axle Studs; Use Nut 86512498; Not Shown

32шт.

1

434797A3

CHASSIS

Chassis; Incl. 11; Also Incl. Parts On Figure 04-06 (Ref 11- 14); 07-03 (Ref 2); 09-10 (Ref 16, 17)

1шт.

1a

434861A3

CHASSIS

Chassis; Incl. 11; Also Incl. Parts On Figure 04-06 (Ref 11- 14); 07-03 (Ref 2); 09-10 (Ref 16, 17)

1шт.

2

411940A1

PANEL

North American Models; Heat Shield Extension

1шт.

2a

431742A1

PANEL

European Models; Heat Shield Extension

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Replaces 832-41308

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

220061A2

PLUG

3 in.; Axle Access

4шт.

7

217-494

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

3/4 PT

2шт.

8

387305A1

GASKET

Chain Tank; If Used

2шт.

9

387091A1

LARGE PLATE

PLATE, LARGE Chain Tank

2шт.

10

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

20шт.

11

86625135

PLUG,1" - 11-1/2 NPT

4шт.

12

H436914

LARGE PLATE

PLATE, LARGE Cover

3шт.

13

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

15

365817A1

COVER

1шт.

16

H436887

CAP

Fuel Filler; Models Without Locking Cap

1шт.

16

108925A1

FILLER CAP

Fuel Filler; Bumper; Rear; See Figure 09-22

1шт.

17

257448A1

CAP

Oil Filler; Incl. 292259A1

1шт.

292259A1

SEAL

Filler Cap

1шт.

18

390516A3

LATCH

ROPS Latch

1шт.

19

278332A1

SPRING WASHER

1шт.

20

495-11081

WASHER,3/4", SAE

1шт.

21

294967A1

WASHER

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

23

294943A1

STUD

1шт.

24

294911A2

HOOK

1шт.

25

394748A1

INSULATION

Models With Heater

2шт.

26

NSS

NOT SOLD SEPARAT

Hood; Engine; See Figure 09-18

1шт.

27

385490A1

DOOR COVER

1шт.

28

NSS

NOT SOLD SEPARAT

Door Assy; See Figure 09-19

1шт.

29

299274A2

COVER,35mm OD

35 mm dia.

6шт.
