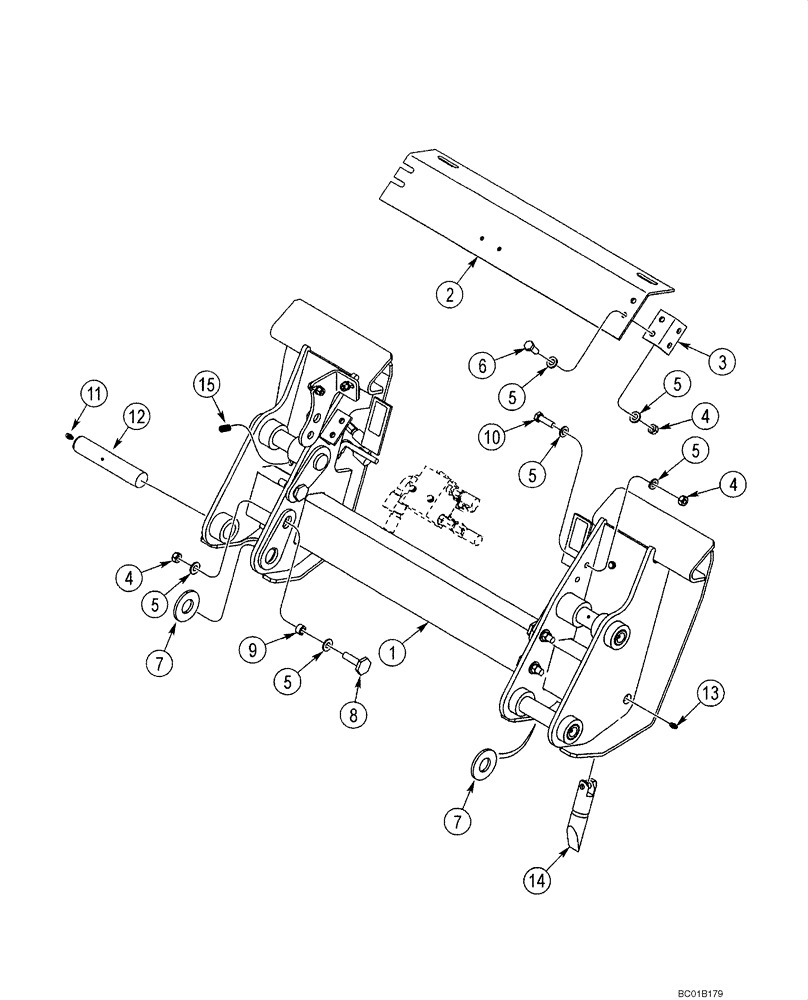

Запчасти Case IH 60XT (09-04) - COUPLER, HYDRAULIC (09) - CHASSIS

1

404599A4

FRAME ASSY

For Attaching Parts, See Figure 08-08

1шт.

2

409782A1

PLATE

Protective; No Longer Used, Order 87620412

1шт.

2

87620412

PLATE

Cover Plate

1шт.

3

409783A1

BRACKET

Coupler Cover

2шт.

4

832-41410

NUT,M10 x 1.5, Cl 10

12шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

24шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

7

495-11138

WASHER,1 1/4", SAE

1-3/8 x 2-1/2 x 3/16

2шт.

8

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

9

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

4шт.

10

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

12

87659406

PIN,31.75mm OD x 169.2mm L

Replaces 394582A2

4шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

14

87413030

PIN

Latch Pin; If Used

2шт.

14

87758365

PIN,31.75mm OD x 142.3mm L

Latch Pin

2шт.

15

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

If used

2шт.
