Запчасти Case IH 60XT (09-01) - FRAME - LOADER LIFT (09) - CHASSIS

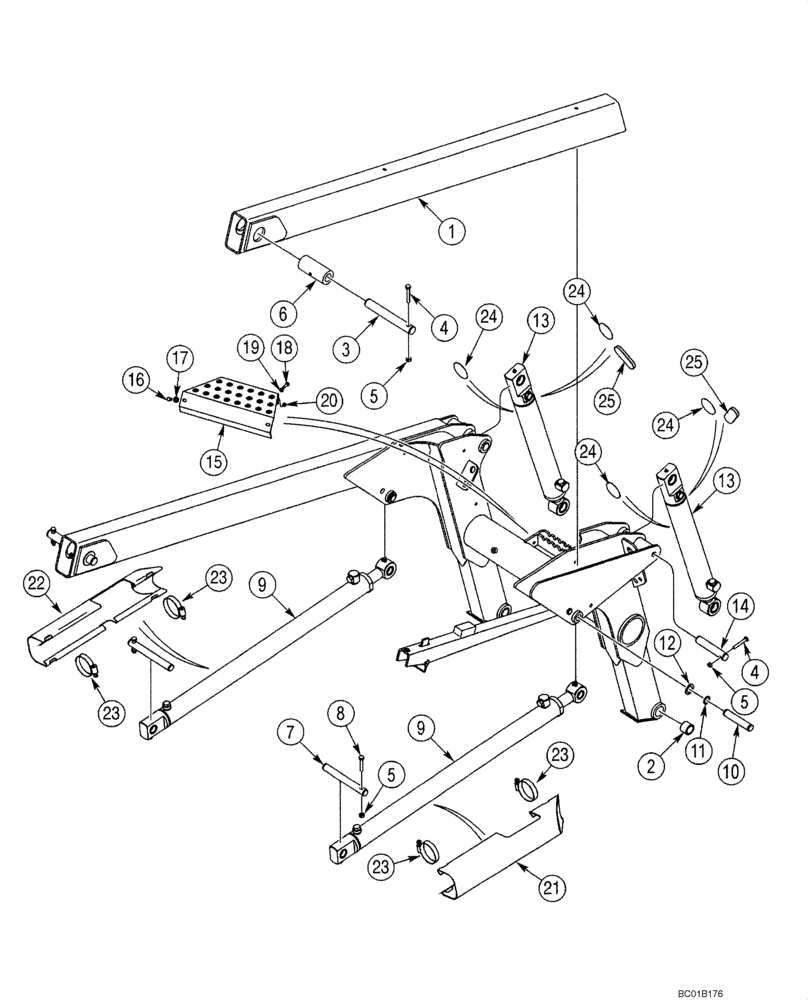

Схема запчастей Case IH 60XT - (09-01) - FRAME - LOADER LIFT (09) - CHASSIS
12
5
14
25
23
1
5
17
19
21
16
2
10
25
18
11
22
24
24
13
23
24
20
4
6
4
9
23
23
9
5
8
24
7
3
15
13

Артикул

Название

Примечание

Количество

369303A7

Loader Arm; Used In Production; For Service Order 434788A1; Incl. 1, 2

1шт.

1

434788A1

ARM

Loader Arm; Incl. Decals 3, 4, 10, See Figure 09-57; Also Incl. Decals 10, See Figure 09-60

1шт.

2

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

32 mm (1-1/4 in)

4шт.

3

382837A1

PIN,31.75mm OD x 234.6mm L

2шт.

4

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

5

832-41410

NUT,M10 x 1.5, Cl 10

6шт.

6

219-86

LUBE NIPPLE,1/8" NPTF

Bushing is NSS

2шт.

7

382838A1

PIN,25.4mm OD x 215mm L

Lift Cylinder

2шт.

8

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

9

86614638

CYLINDER ASSY.

2-1/2 x 35-7/8; Loader Lift; See Figure 08-20; 60XT(NA) BSN JAF0350356, 60XT(EU) BSN JAF0350743, 70XT(NA) BSN JAF0371243, 70XT(EU) BSN JAF0351854

2шт.

9

87705799R

REMAN-HYD CYLINDER

2-1/2 x 35-7/8; Loader Lift; See Figure 08-20; 60XT(NA) BSN JAF0350356, 70XT(NA) BSN JAF0371243

2шт.

9

87705799C

Return Number

CORE-HYD CYLINDER

2шт.

9

447173A1

LIFT CYLINDER

2-1/2 x 35-7/8; Loader Lift; See Figure 08-20; 60(NA) ASN JAF0350357, (EU) ASN JAF0350744; 70(NA) ASN JAF0371244, (EU) ASN JAF0351855

2шт.

9

87438190

CYLINDER ASSY.

2-1/2 x 35-7/8; Loader Lift; See Figure 08-20B; Replaces 447173A1

2шт.

10

405853A1

PIN

Cylinder

2шт.

11

103-1698

SNAP RING,#98, Ext

4шт.

12

495-81187

WASHER,1 1/16" x 1 5/8" x .065"

1-1/16 x 1-3/4 x 1/16

4шт.

13

86614637

CYLINDER ASSY.

2-3/4 x 14-7/8; Used On 60XT; Bucket Tilt; See Figure 08-21; 60XT(NA) BSN JAF0350356, 60XT(EU) BSN JAF0350743

2шт.

13

87438187R

REMAN-HYD CYLINDER

60XT, 70XT all BSN JAF0350356 Reman For New P/N 86614637

2шт.

13

87438187C

Return Number

CORE-HYD CYLINDER

2шт.

13

447171A1

CYLINDER ASSY.

2-3/4 x 14-7/8; Used On 60XT; Bucket Tilt; See Figure 08-21; 60XT(NA) ASN JAF0350357, 60XT(EU) ASN JAF0350744

2шт.

13

87438187R

REMAN-HYD CYLINDER

60XT, 70XT all ASN JAF0350357 Reman For New P/N 447171A1

2шт.

13

87438187C

Return Number

CORE-HYD CYLINDER

2шт.

13

86614639

CYLINDER ASSY.

3 x 14-7/8; Used On 70XT; Bucket Tilt; See Figure 08-22; 70XT(NA) BSN JAF0371243, 70XT(EU) BSN JAF0351854

2шт.

13

87438193R

REMAN-HYD CYLINDER

60XT, 70XT, ALL BSN JAF0371243, Reman for new P/N 86614639

2шт.

13

87438193C

Return Number

CORE-HYD CYLINDER

2шт.

13

447172A1

CYLINDER ASSY.

3 x 14-7/8; Used On 70XT; Bucket Tilt; See Figure 08-22; 70XT(NA) ASN JAF0371244, 70XT(EU) ASN JAF0351855

2шт.

13

87438193R

REMAN-HYD CYLINDER

60XT, 70XT, ALL BSN JAF0371244, Reman for new P/N 447172A1

2шт.

13

87438193C

Return Number

CORE-HYD CYLINDER

2шт.

13

87438193

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 370mm Stroke

3 x 14-7/8; Used On 70XT; Bucket Tilt; See Figure 08-22B; Replaces 447172A1

2шт.

13

87438193R

REMAN-HYD CYLINDER

60XT, 70XT

2шт.

13

87438193C

Return Number

CORE-HYD CYLINDER

2шт.

14

393742A1

PIN

Cylinder

2шт.

434789A1

STEP

Kit; Incl. 15 and Decals 251748A1 and D137186

1шт.

15

409422A1

STEP

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

17

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

18

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

20

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

REF

INSTRUCTION

EUROPEAN MODELS

1шт.

21

429619A1

COVER

Right Hand Lift Cylinder

1шт.

22

429620A1

COVER

Left Hand Lift Cylinder

1шт.

23

214-1444

HOSE CLAMP,58.6mm - 82.5mm

4шт.

24

429630A2

CAP COVER,43mm OD

43 mm; Replaces 429630A1 (50 mm)

2шт.

25

429631A1

28 x 74 mm; If Used

4шт.

Выбрано товаров: 46
