Артикул
Название
Примечание
Количество
REF
INSTRUCTION

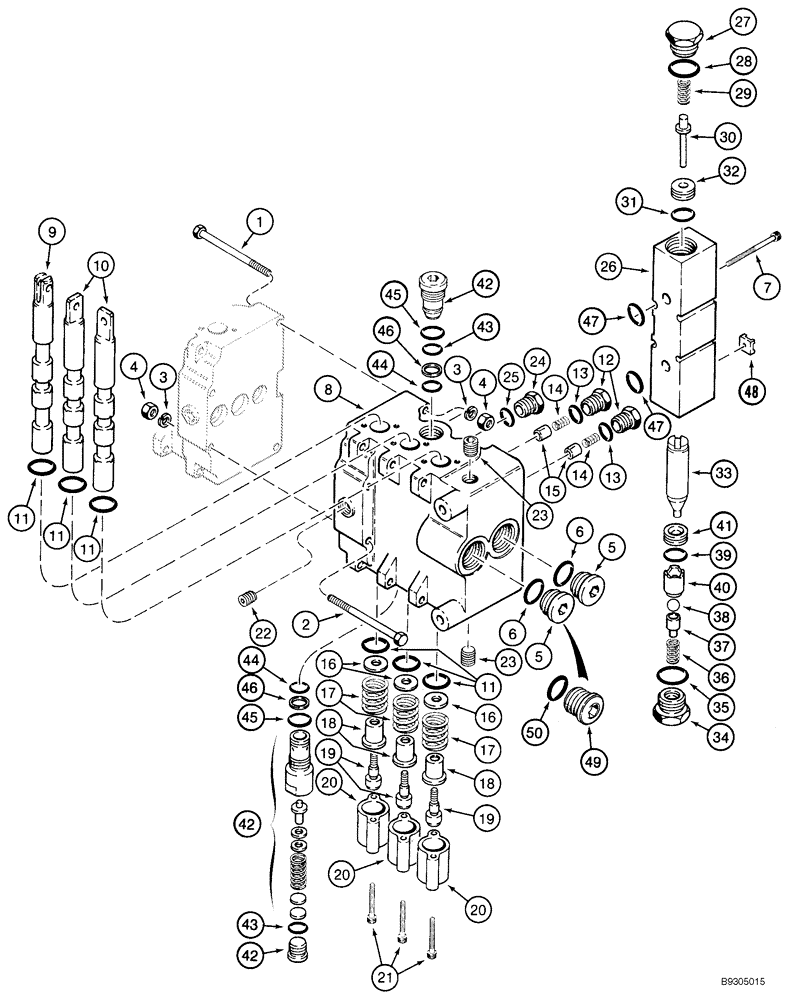

D125 BACKHOE, OUTLET SECTION
1шт.
H674500
VALVE
Control; Backhoe; Incl. 1 - 50; Incl. 08-48 - 08-50
1шт.
87400034
VALVE
Control; Backhoe; Incl. 1 - 50; Incl. 08-48 - 08-50
1шт.
1
414-448
BOLT,Hex, 1/4" - 28 x 3", Gr 5
2шт.
2
414-436
BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5
2шт.
3
495-11028
WASHER,1/4", SAE
(9/32 x 5/8 x 1/16")
4шт.
4
425-114
NUT,1/4"-28, G5
4шт.
6
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
7
62-31040
HEX SOC SCREW,#10 - 32 x 2 1/2"
4шт.
H674528
HYD VALVE SECTION
Incl. 8 - 25; Part Of H674500
1шт.
87407875
HYD VALVE SECTION
Incl. 8 - 25; Part Of 87400034
1шт.
8
NSS
NOT SOLD SEPARAT
Body
1шт.
9
NSS
NOT SOLD SEPARAT
Spool
1шт.
10
NSS
NOT SOLD SEPARAT
Spool
2шт.
11
H438030
O-RING
5/8 x 13/16
6шт.
H438024
SET
Incl. 12 - 15; Part Of H674500
2шт.
87407874
HYD VALVE SECTION
Incl. 12 - 15; Part Of 87400034
2шт.
12
H438231
PLUG
1шт.
14
NSS
NOT SOLD SEPARAT
Spring
1шт.
15
NSS
NOT SOLD SEPARAT
Poppet, Valve
1шт.
H438021
SET
Incl. 16 - 21
3шт.
16
NSS
NOT SOLD SEPARAT
Washer
1шт.
17
N9539
TENSION SPRING
1шт.
18
NSS
NOT SOLD SEPARAT
Spacer
1шт.
19
NSS
NOT SOLD SEPARAT
Bolt
1шт.
20
NSS
NOT SOLD SEPARAT
Cap
1шт.
21
62-31024
SCREW,Hex Soc Hd, #10-32 x 1 1/2"
2шт.
22
H438960
PLUG
1шт.
23
217-433
PLUG,Hex Soc, 1/4" - 18 NPTF
2шт.
24
H438231
PLUG
Incl. 25
1шт.
100405A2
BLOCK ASSY.
Incl. 26 - 41
1шт.
26
NSS
NOT SOLD SEPARAT
Body
1шт.
111935A1
SET OF PARTS
1шт.
27
113751A1
PLUG
Incl. 27 - 33
1шт.
28
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
29
113747A1
SPRING
1шт.
30
H438334
VALVE
1шт.
31
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
32
113750A1
SEAT
1шт.
33
113749A1
PLUNGER
1шт.
34
H438031
PLUG
1шт.
35
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
36
102712A1
SPRING
1шт.
37
H438032
SLEEVE VALVE
1шт.
38
113748A1
BALL
1шт.
39
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
40
H438033
CUP
1шт.
41
113746A1
SEAT
1шт.
H438945
VALVE, PRESSURE RELI
EF 3000-3100 psi; Incl. 42 - 46
2шт.
42
NSS
NOT SOLD SEPARAT
Valve, Relief
1шт.
H674536
O-RING
Incl. 43 - 46
1шт.
45
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
46
NSS
NOT SOLD SEPARAT
Ring, Backup
1шт.
47
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
2шт.
48
H438941
ORIFICE
2,388 mm (0,079 in)
1шт.
49
H438953
PLUG
Incl. 50; If Equipped
1шт.
50
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
13
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
25
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
43
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 62
