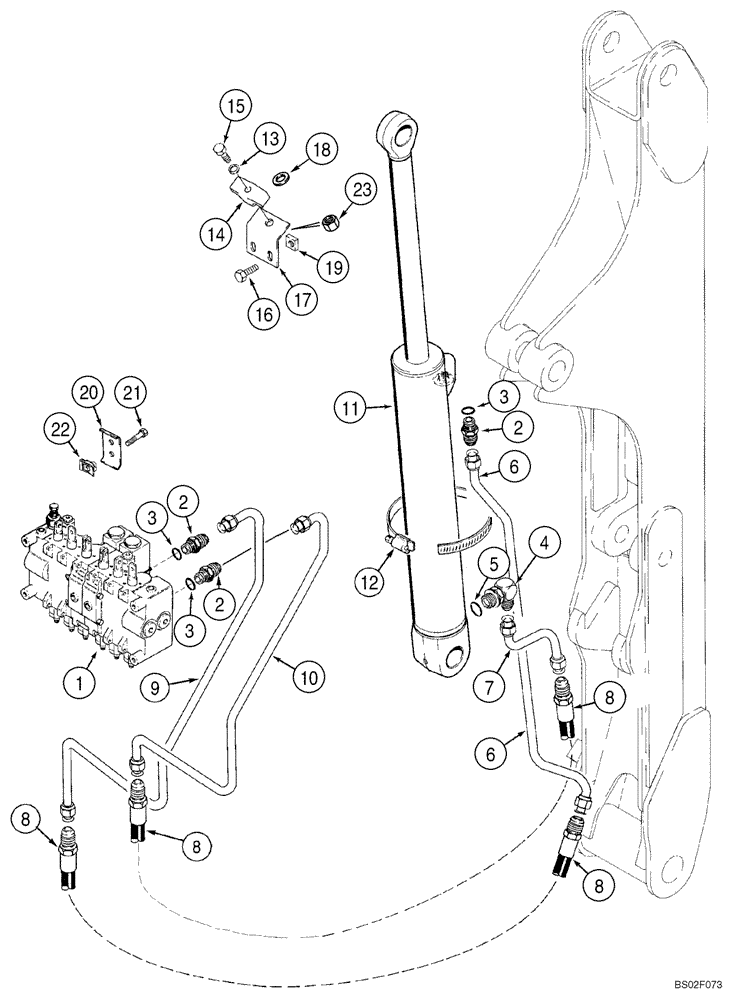

Запчасти Case IH 60XT (08-44) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (D125) (08) - HYDRAULICS

REF

INSTRUCTION

D125 BACKHOE

1шт.

1

H674500

VALVE

Control; Backhoe; See Figure 08-48 - 08-50

1шт.

1

87400034

VALVE

Control; Backhoe; See Figure 08-48 - 08-50

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H439269

ELBOW

Incl. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

255557A1

TUBE

Rod End

1шт.

7

255556A1

TUBE,116, 88 mm Length

Closed End; Rod End

1шт.

8

256927A1

HOSE ASSY.

1550 mm (61 in); Rod End

1-2шт.

9

256136A1

TUBE,595, 225 mm Length

Rod End

1шт.

10

256134A1

TUBE,560, 255 mm Length

Closed End

1шт.

11

1346411C3

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 497.8mm Stroke

76 ID x 498 mm strk; Dipper; Replaces 1346411C2; See Figure 08-53

1шт.

12

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

13

492-11031

LOCK WASHER,5/16"

2шт.

14

D120613

CLAMP,20mm ID

1шт.

15

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If Used

2шт.

17

253977A1

SUPPORT

1шт.

18

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

If Used

3шт.

19

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

20

H45476

CLAMP

2шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

5/16 x 1-3/4

4шт.

22

H346650

NUT

4шт.

23

232-4115

LOCK NUT,5/16"-18, GC

1шт.
