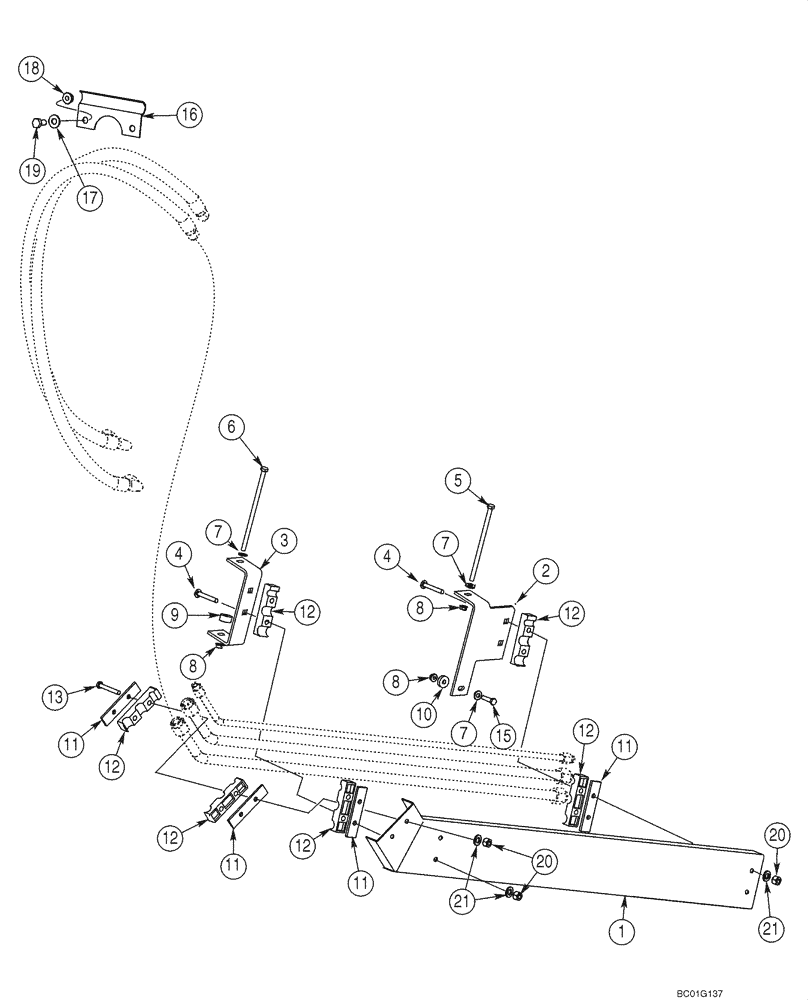

Запчасти Case IH 60XT (08-29) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

REF

INSTRUCTION

Cover and Mounting

1шт.

1

407930A2

COVER

High Flow Tubes; For Decal 411933A1, See Figure 09-57

1шт.

2

409834A2

BRACKET

1шт.

3

409835A2

BRACKET

1шт.

4

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

4шт.

5

814-10200

BOLT,Hex, M10 x 1.5 x 200mm, Cl 8.8

1шт.

6

814-10220

BOLT,Hex, M10 x 1.5 x 220mm, Cl 8.8

1шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

5шт.

8

411345A1

LOCK NUT

3шт.

9

408046A1

SPACER

1шт.

10

409525A1

SPACER

1шт.

11

441607A1

BAR

Replaces 256976A1

4шт.

12

256974A2

FIXING BRACKET

6шт.

13

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

14

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

15

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

16

414374A1

PLATE

Hose Routing Guard

1шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

18

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

19

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

20

832-41412

NUT,M12 x 1.75, Cl 10

M12

4шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
