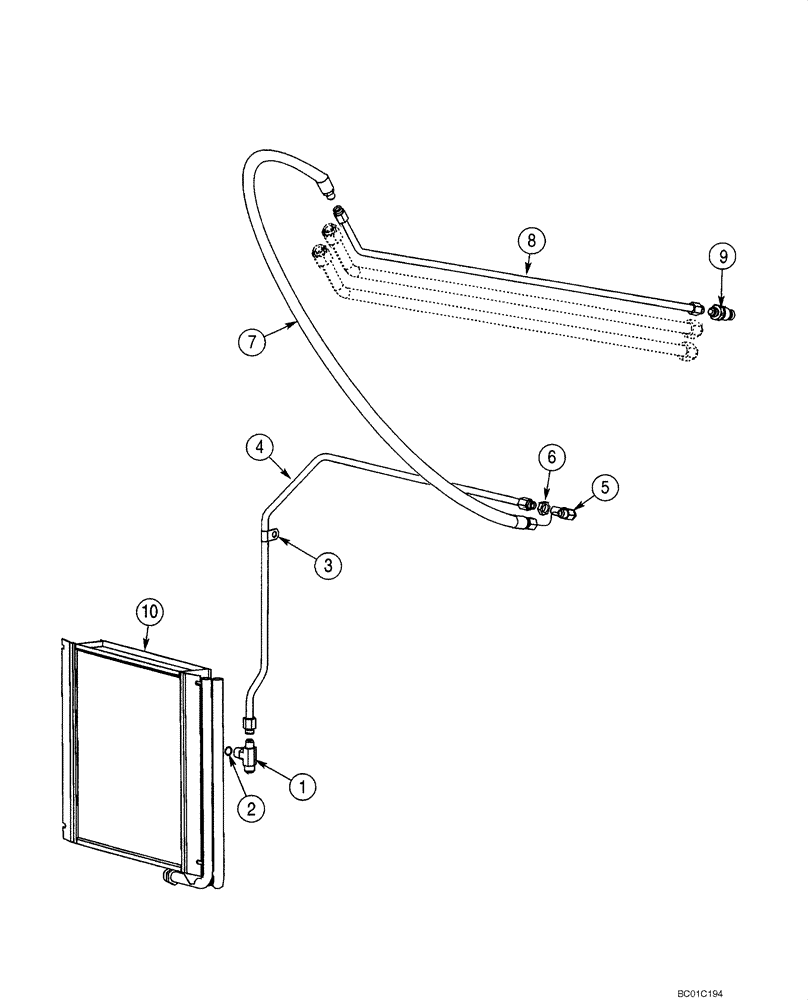

Запчасти Case IH 60XT (08-28) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

REF

INSTRUCTION

Drain, Serial Range: Lines-Coupling

1шт.

1

218-1105

TEE,1 1/16"-12, 37º x 7/8"-14, 37º x 3/4"-14, NPTF Br

Incl. 2, See Figure 06-01, Ref 22

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

4

407684A1

TUBE

Case Drain To Tank

1шт.

5

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8 fl x bkhd fl

1шт.

6

595460

BHD LOCK NUT,7/8" - 14

7/8

1шт.

7

407200A2

HOSE ASSY.

1400 mm (55-1/8 in.); Case Drain

1шт.

8

406927A1

TUBE

Case Drain

1шт.

9

419615A1

COUPLING, QUICK, FEM

If Used

1шт.

9

87417308

COUPLING, BREAK AWAY

Male Quick Disconnect; Replaces 394344A1; Incl. 9A; If Used

1шт.

9a

87426762

RING

Not Illustrated Separately

1шт.

10

385707A1

COOLER, OIL

See Figure 06-01

1шт.
