Запчасти Case IH 60XT (08-26) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

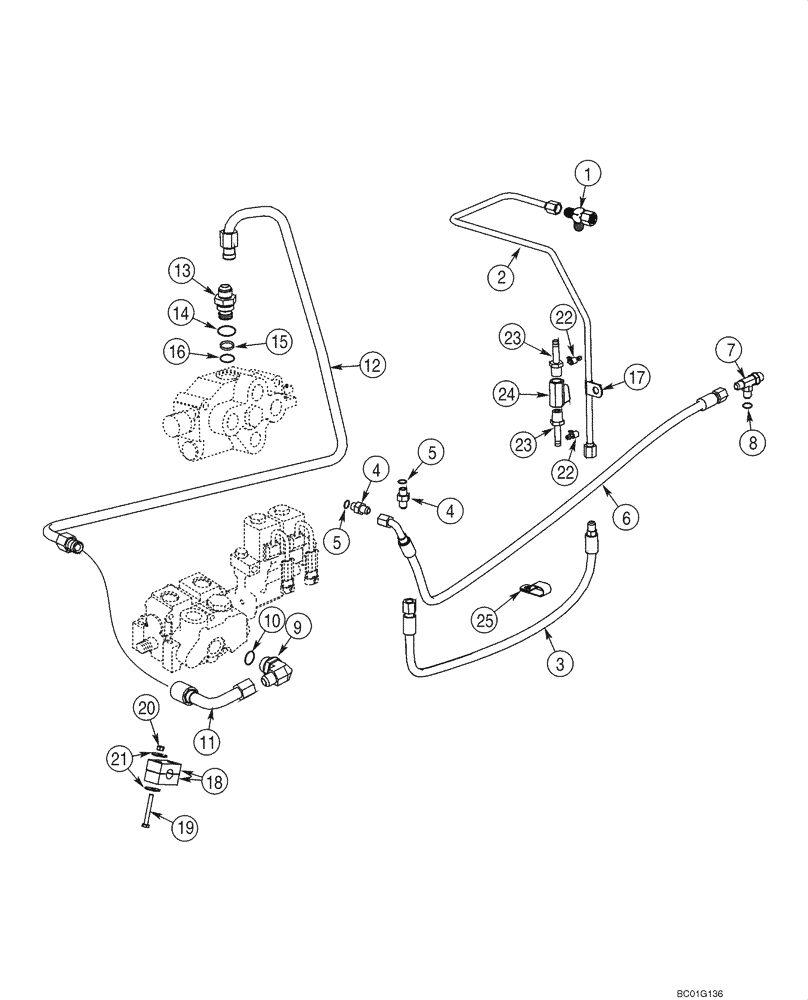

Схема запчастей Case IH 60XT - (08-26) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS
23
15
25
9
14
4
6
3
8
5
12
1
5
2
11
19
4
24
22
16
13
23
10
22
18
7
20
17
21

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Charge Pressure and Pilot Relief Lines

1шт.

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Attaches To 404281A1; See Figure 06-03

1шт.

2

384060A2

TUBE,9.53 mm OD, 326, 320 mm Length

Charge Pressure

1шт.

3

390445A2

HOSE ASSY.

945 mm (37-1/4 in.); Charge Pressure

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

2шт.

6

389542A2

HOSE ASSY.

1795 mm (70-21/32 in.); Pilot Return

1шт.

7

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 8; For Attaching Parts, See Figure 06-03

1шт.

9

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

435992A1

HOSE ASSY.

385 mm (15-5/32 in.); Rear Power Beyond

1шт.

12

436126A1

TUBE

Front Power Beyond

1шт.

13

129878A1

FITTING

Includes 14 - 16; Attaches To H674465, See Figure 08-19

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

A52424

BACK-UP RING

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4" Tube

1шт.

17

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

18

254830A1

CLAMP BRACKET

2 Piece

1шт.

19

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

Used on 60XT

2шт.

20

832-41406

NUT,M6 x 1, Cl 8

Used On 60XT

2шт.

21

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

60XT (4), 70XT (2)

2-4шт.

22

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

23

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

3/8 stem x PT

2шт.

24

397431A1

VALVE

1шт.

25

D47783

CLAMP

1шт.

19

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

Used on 70XT

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
