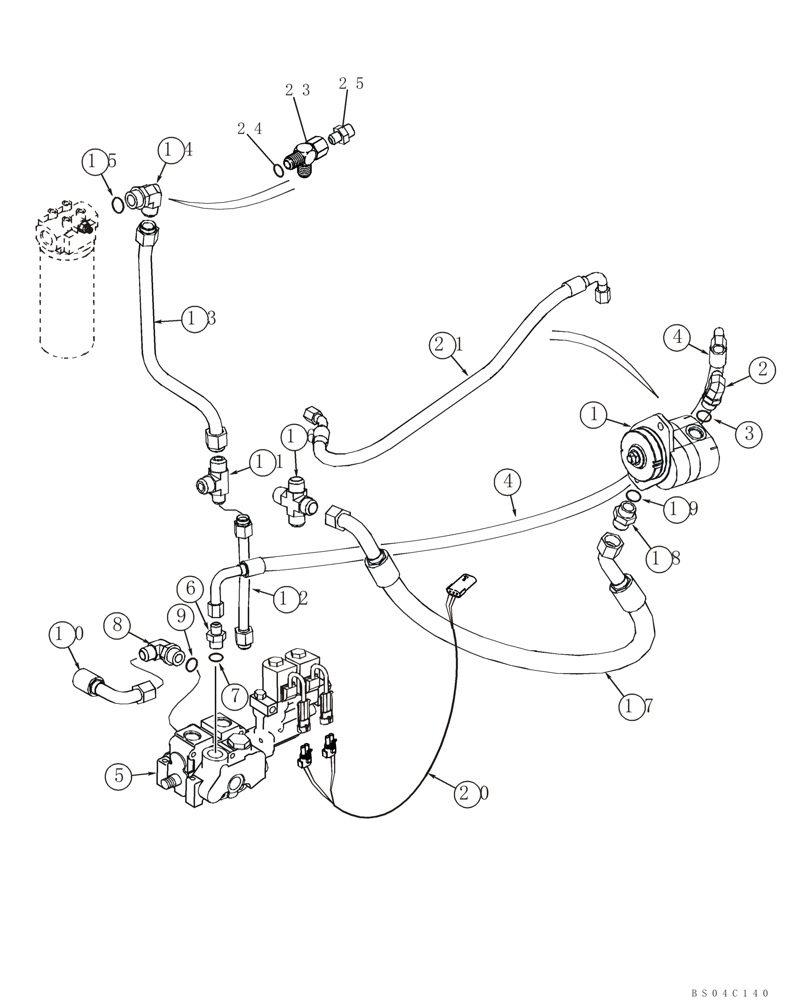

Запчасти Case IH 60XT (08-25) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

REF

INSTRUCTION

Supply and, Serial Range: Return-Pump

1шт.

1

411822A1

PUMP, HYDRAULIC

High Flow; Component Parts Not Serviced Separately

1шт.

2

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

389535A1

HOSE ASSY.

625 mm (24-5/8 in.); Gear Pump To Valve

1шт.

5

372194A2

VALVE

High Flow; See Figure 08-30

1шт.

6

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 Or; Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

411253A1

HOSE ASSY.

800 mm (31-1/2 in); Return

1шт.

11

218-590

TEE,37º, 1 5/16"-12 x 1 1/16"-12, Run

1шт.

12

411250A2

TUBE

Lower Filter; For Attaching Parts, See Figure 06-02, Ref 23

1шт.

13

411252A1

TUBE

Upper Filter

1шт.

14

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 15; If Used

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

391762A1

FITTING

1шт.

17

389540A1

HOSE ASSY.

1060 mm (41-3/4 in), Suction

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

20

381005A1

HARNESS

High Flow; See Figure 04-09

1шт.

21

408999A2

HOSE ASSY.

905 mm (35-5/8 in); Used On 60XT; Pump to Loader Valve; See Figure 06-02, Ref 9; If Used

1шт.

21

87422159

HOSE ASSY.

860 mm (33-7/8 in); Used On 60XT, 70XT; Pump to Loader Valve; See Figure 06-02, Ref 9

1шт.

22

409000A2

HOSE ASSY.

800 mm (31-1/2 in); Used On 70XT; Pump to Loader Valve; See Figure 06-02, Ref 9A

1шт.

22

87422159

HOSE ASSY.

860 mm (33-7/8 in); Used On 60XT, 70XT; Pump to Loader Valve; See Figure 06-02, Ref 9A

1шт.

23

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1.0 x 1.0 x 1.0; Incl. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

218-1705

REDUCER,37º, 1 5/16"-12, Fem x 1 1/16"-12 Male

1.0 x 3/4

1шт.
