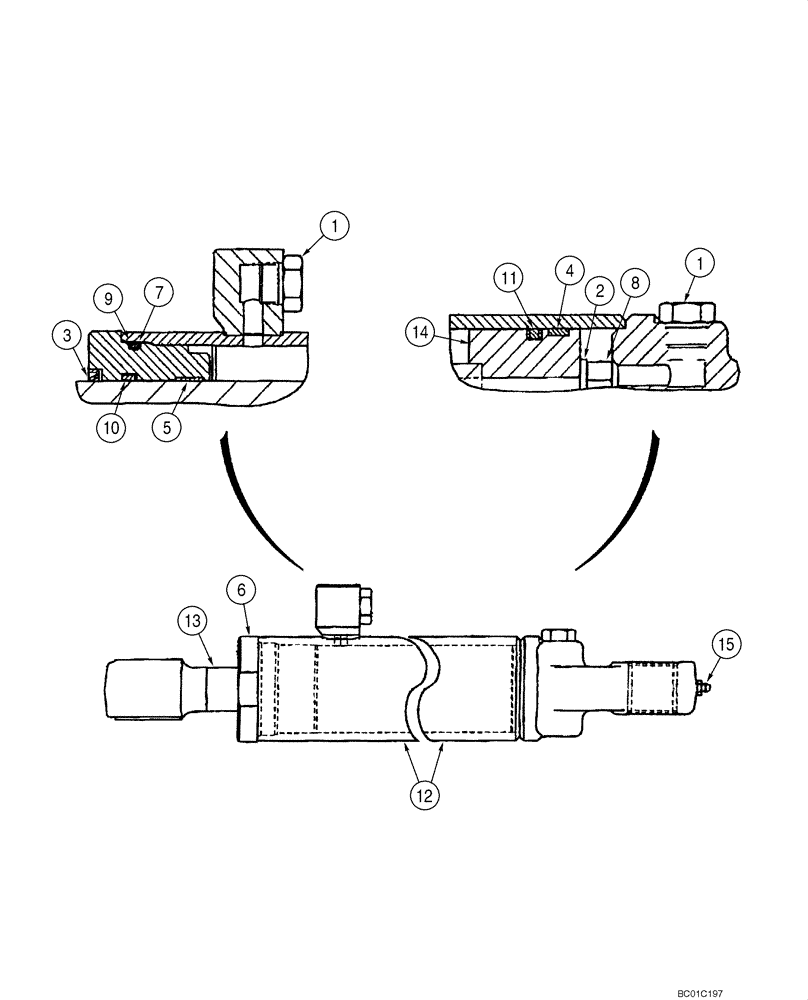

Запчасти Case IH 60XT (08-21) - CYLINDER - LOADER BUCKET, 60XT(NA) BSN JAF0350356, 60XT(EU) BSN JAF0350743 (08) - HYDRAULICS

86614637

CYLINDER ASSY.

2-3/4 x 14-7/8; 60XT(NA) BSN JAF0350356, 60XT(EU) BSN JAF0350743

2шт.

87438187R

REMAN-HYD CYLINDER

Return Number

2шт.

87438187C

Return Number

CORE-HYD CYLINDER

1шт.

1

214389

PLUG,3/4" - 16 ORB

Includes Ref. 1A

2шт.

1a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not Illustrated Separately

1шт.

2

694377

WASHER

1шт.

3

46886

OIL SEAL,34.92mm ID x 44.76mm OD x 5.13mm Thk

1шт.

4

773784

RING,Split, 63.5mm ID x 69.85mm OD x 9.53mm Thk

1шт.

5

86571906

WEAR RING

1шт.

6

86611141

HEAD (CYLINDER)

1шт.

7

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

1шт.

8

328-1456

BOLT,Hex, 7/8" - 14 x 3-1/2", Gr 8

1шт.

9

86536100

WASHER

1шт.

10

9600664

SEAL,35.05mm ID x 44.2mm OD x 7.37mm Thk

1шт.

11

86563840

SEAL

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Tube; Incl. 12A

1шт.

12a

86624450

BUSHING

Not Illustrated Separately

2шт.

13

86622508

ROD

1шт.

14

86611654

PISTON

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

86613643

SEAL KIT

Seal; Incl. 3 - 5, 7, 9 - 11

1шт.
