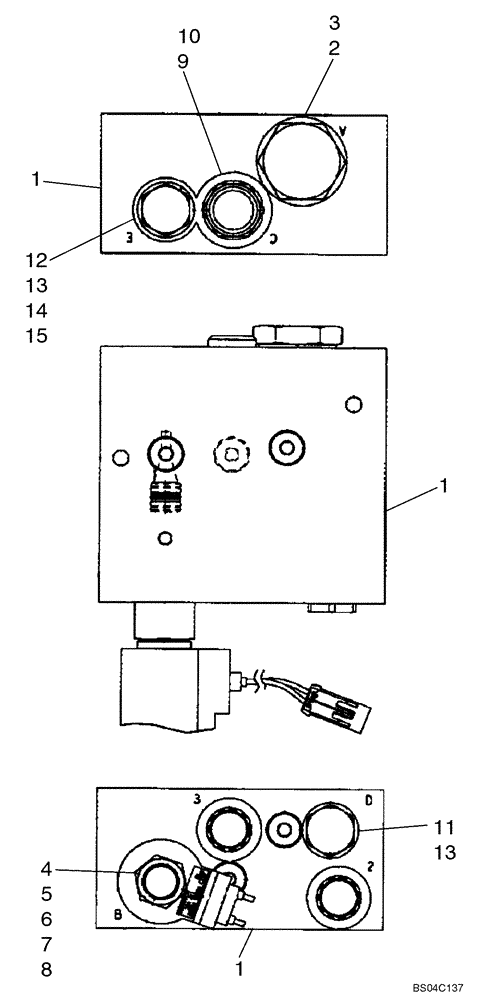

Запчасти Case IH 60XT (08-18) - VALVE ASSY- SELF-LEVELING, DUAL (70XT) ASN JAF371244 (08) - HYDRAULICS

1

451472A1

VALVE

Manifold; Incl. 2 - 15

1шт.

2

451495A1

CARTRIDGE

Flow Control; Incl. 3

1шт.

3

396977A1

SEAL KIT

Flow Divider; Kit; Not Illustrated; Incl. 3A - 3E

1шт.

3a

435273A1

CARTRIDGE

Replaces 396967A1

1шт.

3b

440487A1

CARTRIDGE

Replaces 396968A1

1шт.

3c

396994A2

CARTRIDGE

1шт.

3d

435273A1

CARTRIDGE

1шт.

3e

440487A1

CARTRIDGE

1шт.

4

377576A1

SOLENOID VALVE

Incl. 5 - 8, Not Illustrated Separately

1шт.

5

377574A1

VALVE, CONTROL

Cartridge

1шт.

6

377575A1

COIL

Coil

1шт.

7

396976A1

SEAL KIT

Kit; Component Parts Not Serviced Separately

1шт.

8

396975A1

NUT

1шт.

9

440571A1

CARTRIDGE

Counterbalance; Incl. 10

1шт.

10

396978A1

SEAL KIT

Counterbalance; Kit; Component Parts Not Serviced Separately

1шт.

11

413216A1

CARTRIDGE

Check/Anticavitation; Incl. 13

1шт.

12

440489A1

CARTRIDGE

Pilot Operations Check; Incl. 13

1шт.

13

396974A1

SEAL KIT

Relief Valve; Incl. 13A - 13C

1шт.

13a

396970A1

VALVE, PRESSURE RELI

EF

1шт.

13b

440489A1

CARTRIDGE

1шт.

13c

413216A1

CARTRIDGE

1шт.

14

440490A1

PISTON

Pilot Operations Check; Incl. 15

1шт.

15

440491A1

SEAL KIT

Pilot Operations Piston; Kit; Component Parts Not Serviced Separately

1шт.
