Запчасти Case IH 60XT (08-14) - VALVE ASSY, CONTROL - SPOOLS AND DETENTS (08) - HYDRAULICS

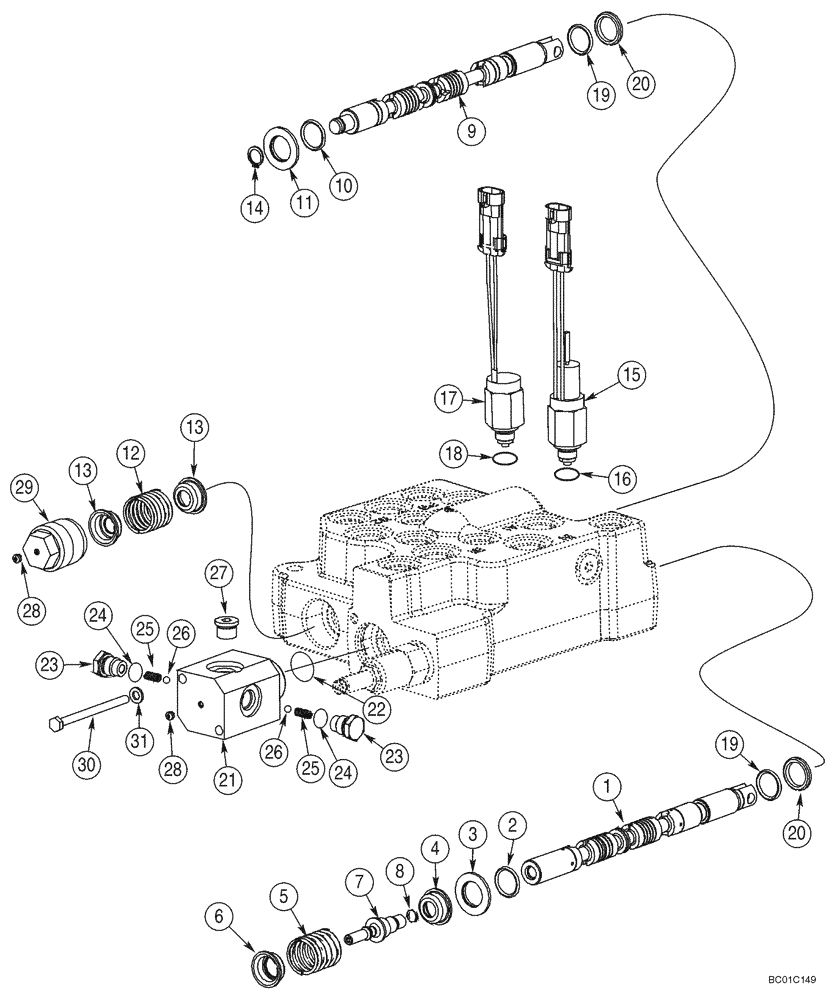

Схема запчастей Case IH 60XT - (08-14) - VALVE ASSY, CONTROL - SPOOLS AND DETENTS (08) - HYDRAULICS
16
8
26
19
1
4
13
2
24
15
23
25
27
3
9
13
17
26
12
22
18
10
28
29
20
19
5
24
21
6
11
30
28
25
23
7
20
14
31

Артикул

Название

Примечание

Количество

409063A1

VALVE

Loader; Incl. 1 - 31; Incl. 08-13, 08-14

1шт.

409063A2

VALVE

Loader; Incl. 1 - 31; Incl. 08-13, 08-14

1шт.

87427900

VALVE

Loader; Incl. 1 - 31; Incl. 08-13, 08-14; Replaces 409063A2, 60XT NA Models ASN JAF0368195, 60XT European Models ASN JAF0388408, 70XT NA Models ASN JAF0388564, 70XT European Models ASN JAF0387313

1шт.

87431788

VALVE

Loader; Incl. 1 - 31; Incl. 08-13, 08-14

1шт.

388170A2

SPOOL

Lift; With Manual Detent; Incl. 1 - 8; Used With 409063A1

1шт.

436749A1

SPOOL

Lift; With Manual Detent; Incl. 1 - 8; Used With 409063A2

1шт.

87427902

SPOOL

Lift; With Manual Detent; Incl. 1 - 8; Used With 87427900, 87431788

1шт.

1

NSS

NOT SOLD SEPARAT

Spool Loader Lift

1шт.

2

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

3

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

4

375708A1

SPRING WASHER

1шт.

5

380571A1

TENSION SPRING

1шт.

5

1994596C1

SPRING

Used With 87427900, 87431788

1шт.

6

375707A1

RETAINER

1шт.

383471A1

Manual Detent; Not Serviced As An Assembly; Order Components; Incl. 7 - 8

1шт.

7

383472A1

DETENT

Use Loctite

1шт.

345-601

LOCTITE

No. 203, 1 ml

1шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

388173A2

SPOOL

Loader Bucket; Auxiliary; Incl. 9 - 14; Used With 409063A1

1шт.

388173A4

SPOOL

Loader Bucket; Auxiliary; Incl. 9 - 14; Used With 409063A2

1шт.

87427904

SPOOL

Loader Bucket; Auxiliary; Incl. 9 - 14; Used With 87427900, 87431788

1шт.

9

NSS

NOT SOLD SEPARAT

Spool

1шт.

10

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

11

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

12

380571A1

TENSION SPRING

1шт.

12

1994596C1

SPRING

Used With 87427900, 87431788

1шт.

13

375708A1

SPRING WASHER

2шт.

14

100-1647

SNAP RING,#47, Ext

1шт.

15

411875A1

SOLENOID

Spool Lock; Incl. 18; Used With 409063A1

1шт.

15

411875A2

SOLENOID

Spool Lock; Incl. 18; Used With 409063A2, 87427900

1шт.

15

87429888

SOLENOID VALVE

Spool Lock; Incl. 18; Used With 87431788

1шт.

16

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

Used w/ 87431788

1шт.

17

411874A1

SOLENOID

Spool Lock; Incl. 16; Used With 409063A1

1шт.

17

411874A2

SOLENOID

Spool Lock; Incl. 16; Used With 409063A2,87427900

1шт.

17

87429889

SOLENOID VALVE

Spool Lock; Incl. 16; Used With 87431788

1шт.

18

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

Used w/ 87431788

1шт.

19

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

20

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

2шт.

21

409065A1

Body; Used With 409063A1

1шт.

21

417362A1

Body; Used With 409063A2, 87427900, 87431788

1шт.

22

238-5027

O-RING,0.07" Thk x 1.301" ID, -27, Cl 5, 75 Duro

1шт.

23

409916A1

PLUG

Incl. 24

2шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

399853A1

TENSION SPRING

Detent

2шт.

26

211-1007

BALL,7/32" Dia

Gr 24, CRS

2шт.

27

9625178

PLUG,9/16" - 18 ORB

1шт.

28

G107780

VALVE, CHECK

2шт.

29

375714A2

CAP

Centering Spring; Use Loctite

1шт.

B17423

LOCTITE

Loctite, No. 271, 50 ml

1шт.

30

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 53
