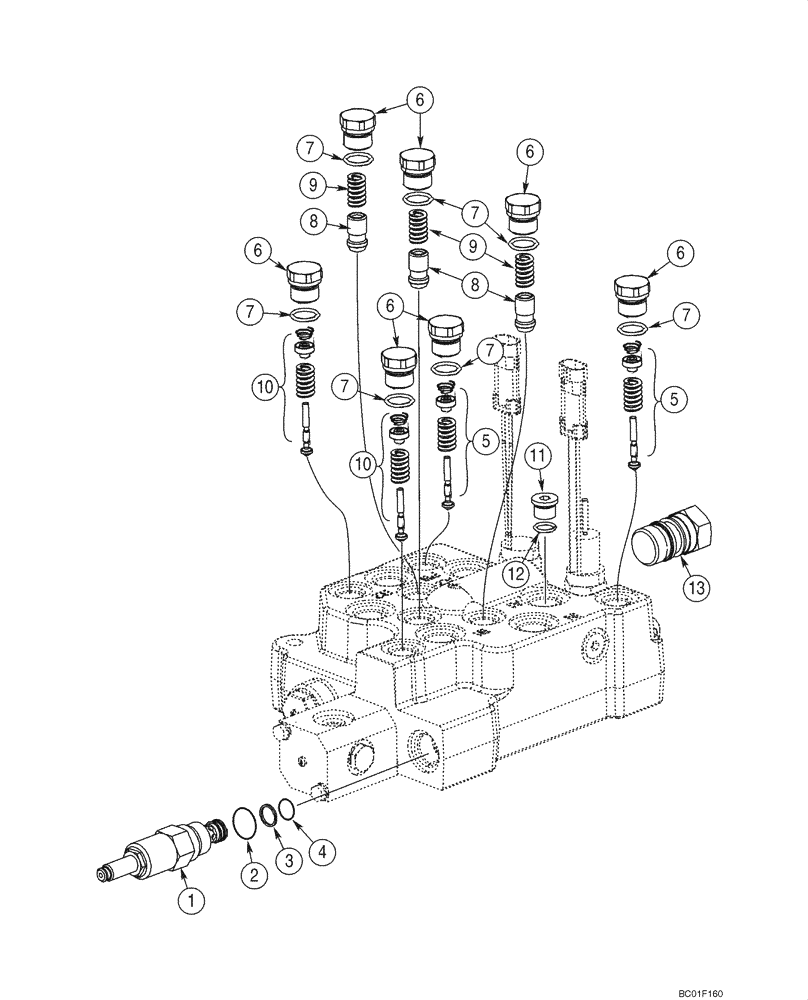

Запчасти Case IH 60XT (08-13) - VALVE ASSY, CONTROL - LOADER (08) - HYDRAULICS

409063A1

VALVE

Loader; Incl. 1 - 13; Incl. Figure 08-14

1шт.

409063A2

VALVE

Control; Loader; Two Spool; Incl. 1 - 13; Incl. 08-14; If Used

1шт.

87427900

VALVE

Control; Incl. 1 - 13; Incl. 08-14; If Used; Replaces 409063A2, 60XT NA Models ASN JAF0368195, 60XT European Models ASN JAF0388408, 70XT NA Models ASN JAF0388564, 70XT European Models ASN JAF0387313

1шт.

87431788

VALVE

Control; Incl. 1 - 13; Incl. 08-14; If Used; Replaces 87427900

1шт.

129842A2

VALVE, PRESSURE RELI

EF Incl. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

G110098

KIT

Seal; Incl. 2 - 4

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

G107870

BACK-UP RING,Square, 1.32mm Thk x 12.73mm ID

1шт.

4

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

5

383088A2

VALVE, PRESSURE RELI

EF 3800 psi; Component Parts Not Serviced Separately

2шт.

409025A1

PLUG,Hex, 3/4" - 16 ORB

Incl. 6, 7

7шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

392956A1

VALVE POPPET

3шт.

9

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

3шт.

10

383121A2

VALVE, PRESSURE RELI

EF 3100 psi; Component Parts Not Serviced Separately

2шт.

11

9625178

PLUG,9/16" - 18 ORB

Incl. 12

1шт.

13

411343A1

PLUG

Counterbalance Valve; Incl. 396978A1

1шт.

396978A1

SEAL KIT

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
