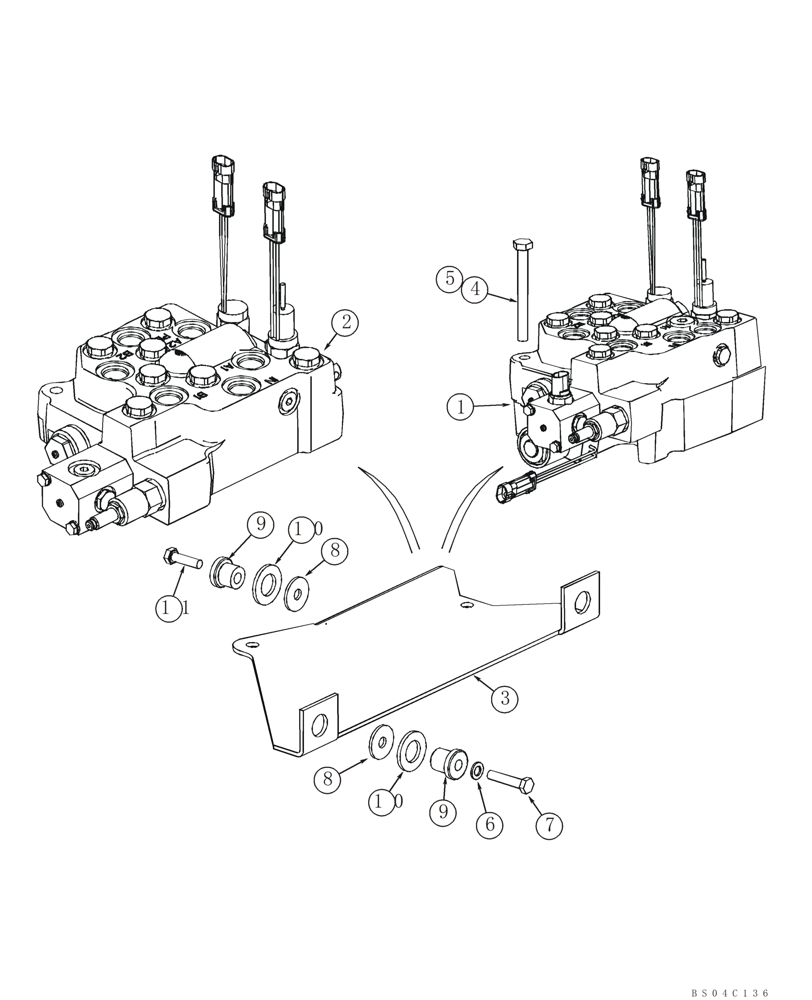

Запчасти Case IH 60XT (08-12) - VALVE, CONTROL - MOUNTING (08) - HYDRAULICS

REF

INSTRUCTION

Dual Self Level

1шт.

1

REF

INSTRUCTION

Used On 60XT; Dual Self Level; See Figure 08-15

1шт.

2

REF

INSTRUCTION

Used On 70XT; Use With Dual Self Level Valve 411761A1; See Figure 08-17

1шт.

3

432469A2

PLATE

Valve Mounting

1шт.

4

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

Used on 60XT

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

Used on 60XT

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used on 60XT

2шт.

7

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

8

495-11081

WASHER,3/4", SAE

3шт.

9

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

3шт.

10

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3шт.

11

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.
