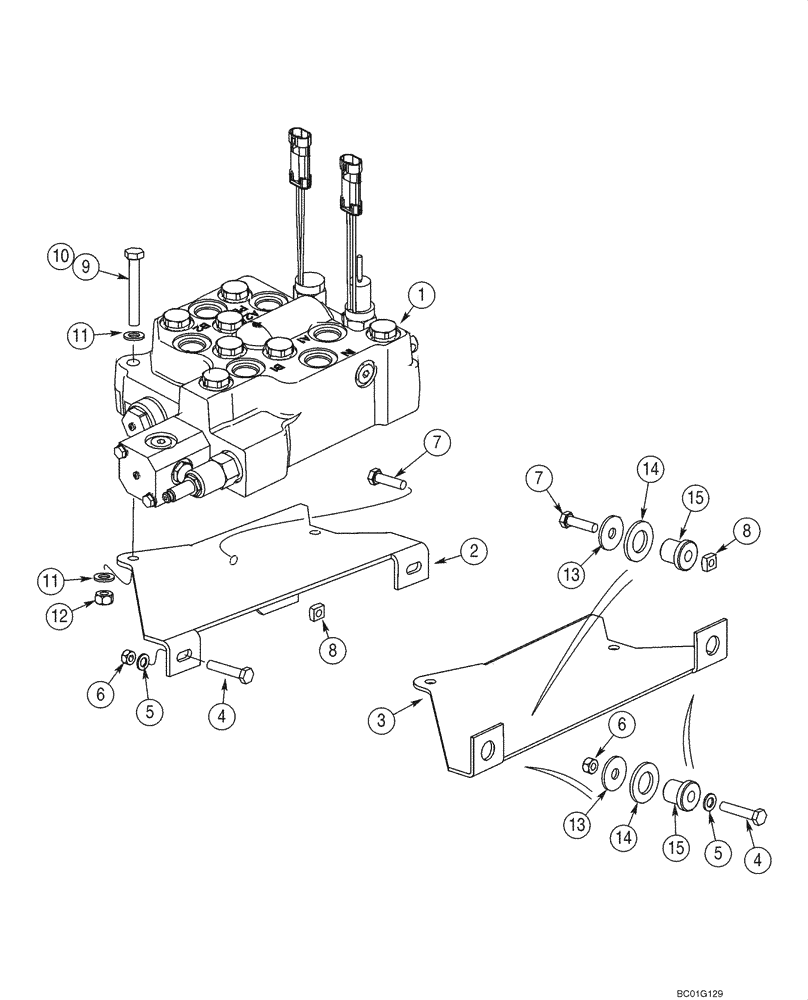

Запчасти Case IH 60XT (08-11) - VALVE, CONTROL - MOUNTING (08) - HYDRAULICS

1

REF

INSTRUCTION

Loader Control Valve; See Figure 08-13

1шт.

2

432448A2

PLATE

Used On 60XT; Valve Mounting; Models Without Dual Self Level; See Figure 08-03; Replaces 432448A1

1шт.

3

432469A2

PLATE

Used On 70XT; Valve Mounting

1шт.

4

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

1шт.

9

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

10

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

12

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

13

495-11081

WASHER,3/4", SAE

3шт.

14

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3шт.

15

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

3шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
