Запчасти Case IH 60XT (08-06) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

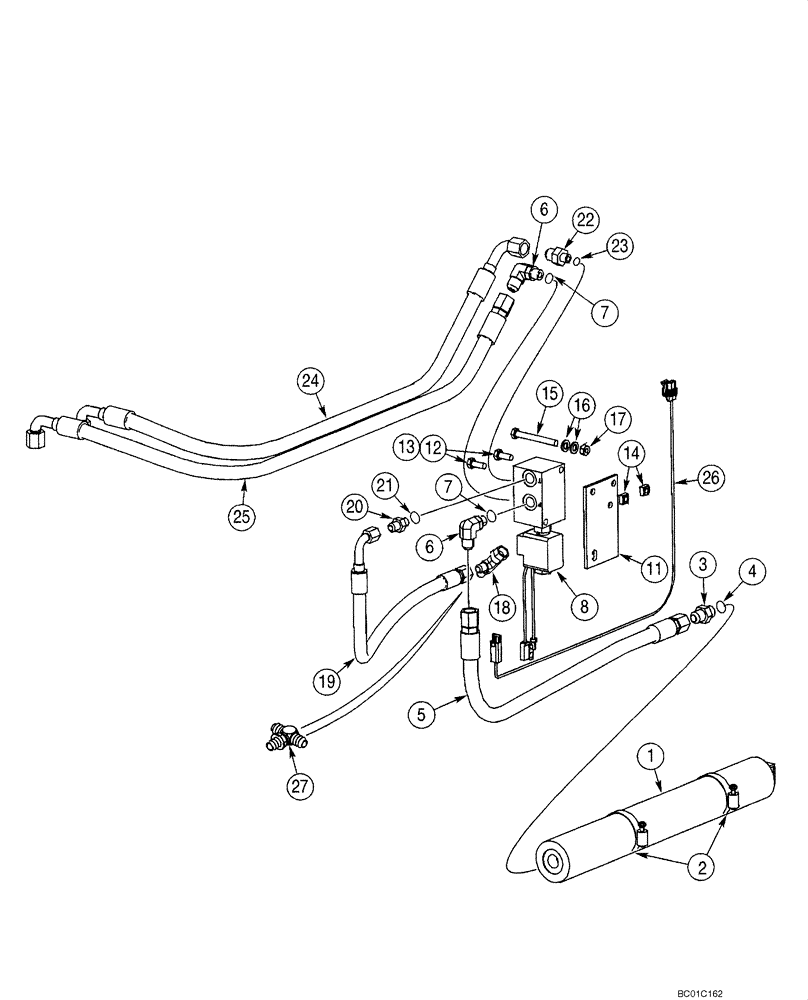

Схема запчастей Case IH 60XT - (08-06) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS
26
19
15
22
14
20
27
4
11
2
16
21
23
13
17
8
18
25
6
12
1
6
5
24
7
7
3

Артикул

Название

Примечание

Количество

1

395831A1

ACCUMULATOR

For Decal; See Figure 09-50, Ref 5

1шт.

2

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

396565A1

HOSE ASSY.

640 mm (25-3/16 in)

1шт.

6

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. 7

2шт.

8

308023A1

VALVE

Ride Control; Incl. 9, 10; If Used; Manufacturer - Dana

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

87428444

VALVE

Ride Control; Incl. 9, 10; Manufacturer - Parker

1шт.

9

344905A1

SEAL KIT

Seal, Not Illustrated; Manufacturer - Dana

1шт.

9

87424684

SEAL KIT

Seal; Not Illustrated; Manufacturer - Parker

1шт.

10

344906A1

KIT

Not Illustrated; Manufacturer - Dana

1шт.

10

87424685

REPAIR KIT

Solenoid; Repair; Not Illustrated; Manufacturer - Parker

1шт.

11

411378A2

SUPPORT

1шт.

12

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Models with Foot Throttle; See Figure 03-03

2шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Models with Deluxe Heater; See Figure 09-36

2шт.

14

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

15

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

18

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Right Hand Drive Motor; See Figure 06-03, Ref 17

1шт.

19

396563A1

HOSE ASSY.

495 mm (19-1/2 in); Valve To Tank

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 21

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. 23

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

396561A1

HOSE ASSY.

930 mm (36-5/8 in); Valve to Cylinder Base; See Figure 08-20

1шт.

25

396559A1

HOSE ASSY.

1000 mm (39-3/8 in); Valve to Cylinder Rod End

1шт.

26

310838A1

HARNESS

Ride Control; For Attaching Parts; See Figure 04-23

1шт.

27

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Models With Hydraulic Actuated Brake; See Figure 07-05

1шт.

Выбрано товаров: 31
