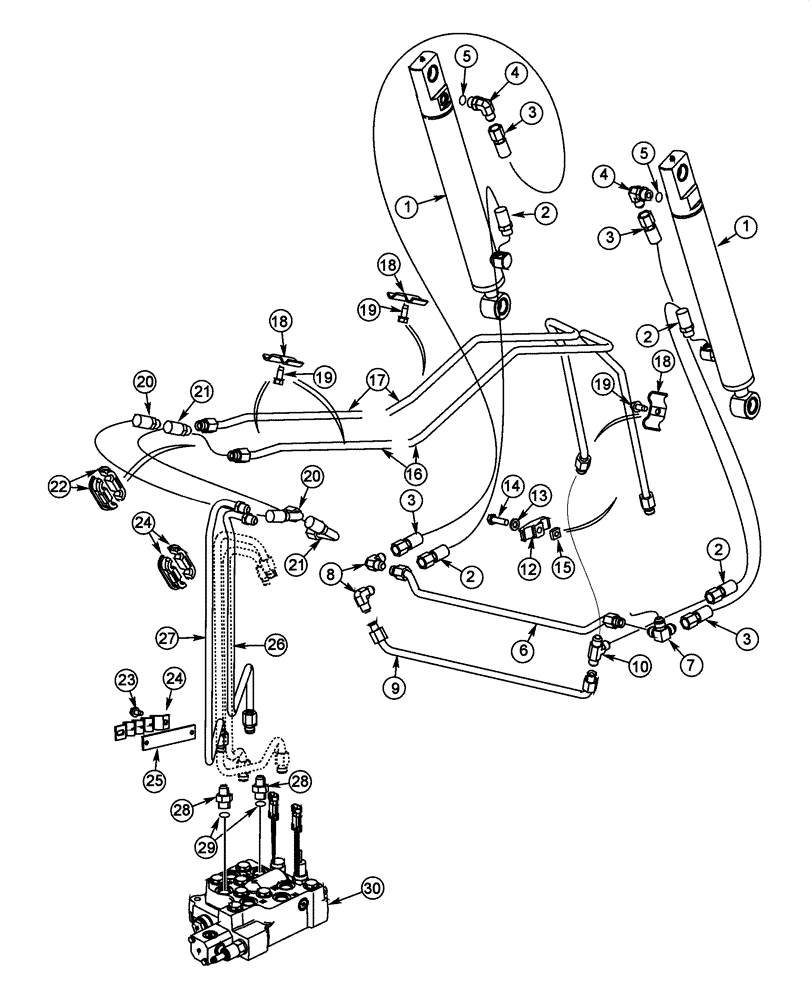

Запчасти Case IH 60XT (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

1

86614637

CYLINDER ASSY.

2-3/4 x 14-7/8; Used On 60XT; Tilt; See Figure 08-21; 60XT(NA) BSN JAF0350356, (EU) BSN JAF0350743

2шт.

87438187R

REMAN-HYD CYLINDER

60XT

2шт.

87438187C

Return Number

CORE-HYD CYLINDER

1шт.

1

447171A1

CYLINDER ASSY.

2-3/4 x 14-7/8; Used On 60XT; Tilt; See Figure 08-21; 60XT(NA) ASN JAF0350357, (EU) ASN JAF0350744;

2шт.

87438187R

REMAN-HYD CYLINDER

60XT

2шт.

87438187C

Return Number

CORE-HYD CYLINDER

1шт.

1

87438187

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 370mm Stroke

2-3/4 x 14-7/8; Used On 60XT; Tilt; See Figure 08-21B; Replaces 447171A1

2шт.

87438187R

REMAN-HYD CYLINDER

60XT

2шт.

87438187C

Return Number

CORE-HYD CYLINDER

1шт.

1

86614639

CYLINDER ASSY.

3 x 14-7/8; Used On 70XT; Tilt; See Figure 08-22; 70XT(NA) BSN JAF0371243, 70XT(EU) BSN JAF0351854

2шт.

87438193R

REMAN-HYD CYLINDER

70XT, ALL BSN JAF0371243, Reman for new P/N 86614639

2шт.

87438193C

Return Number

CORE-HYD CYLINDER

1шт.

1

447172A1

CYLINDER ASSY.

3 x 14-7/8; Used On 70XT; Tilt; See Figure 08-22; 70XT(NA) ASN JAF0371244, 70XT(EU) ASN JAF0351855

2шт.

87438193R

REMAN-HYD CYLINDER

70XT, ALL BSN JAF0371244, Reman for new P/N 447172A1

2шт.

87438193C

Return Number

CORE-HYD CYLINDER

1шт.

1

87438193

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 370mm Stroke

3 x 14-7/8; Used On 70XT; Tilt; See Figure 08-22B; Replaces 447172A1

2шт.

87438193R

REMAN-HYD CYLINDER

70XT

2шт.

87438193C

Return Number

CORE-HYD CYLINDER

1шт.

2

373241A3

HOSE ASSY.,9.53mm ID x 460mm L

460 mm (18-1/8 in.); Curl; Rod End

2шт.

3

373240A5

HOSE ASSY.

355 (14 in); Dump; Closed End; Replaces 373240A4 (340 mm (13-3/8 in.))

2шт.

3

87387193

HOSE ASSY.,9.53mm ID x 355mm L

Hose Assy; 355 mm, 14 in; Dump; Replaces 373240A5

2шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 5

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

373223A3

TUBE,610, 31 mm Length

1шт.

7

D124661

ELBOW

1шт.

8

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

9

373225A3

TUBE,584, 50 mm Length

1шт.

10

218-594

TEE,3/4"-16, 37 Degree

1шт.

11

H434900

CLAMP

2шт.

12

D120679

CLAMP,Tube, 1/2"

1шт.

14

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

1шт.

16

406334A1

TUBE

1шт.

17

406336A1

TUBE

1шт.

18

86501706

CLAMP

4шт.

19

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

3/8 x 7/8

4шт.

20

406242A1

HOSE ASSY.,9.53mm ID x 580mm L

580 mm (22-7/8 in); Tip

1шт.

21

406088A1

HOSE ASSY.,9.53mm ID x 600mm L

600 mm (23-5/8 in); Tip

1шт.

22

376523A2

SUPPORT,1/2"

1/2 in.

2шт.

23

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

5/16 x 5/8

2шт.

24

406941A1

BAR

Clamp Face

1шт.

25

406940A1

BAR

Clamp Back

1шт.

26

409164A1

TUBE

Used On 60XT

1шт.

26b

411790A1

TUBE

Used On 70XT; Models Without Dual Self Level; See Figure 08-04; Not Illustrated

1шт.

27

409161A1

TUBE

Used On 60XT

1шт.

27b

411788A1

TUBE

Used On 70XT; Models Without Dual Self Level; See Figure 08-04; Not Illustrated

1шт.

28

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 31

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

REF

INSTRUCTION

Loader Control Valve; See Figure 08-13

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
