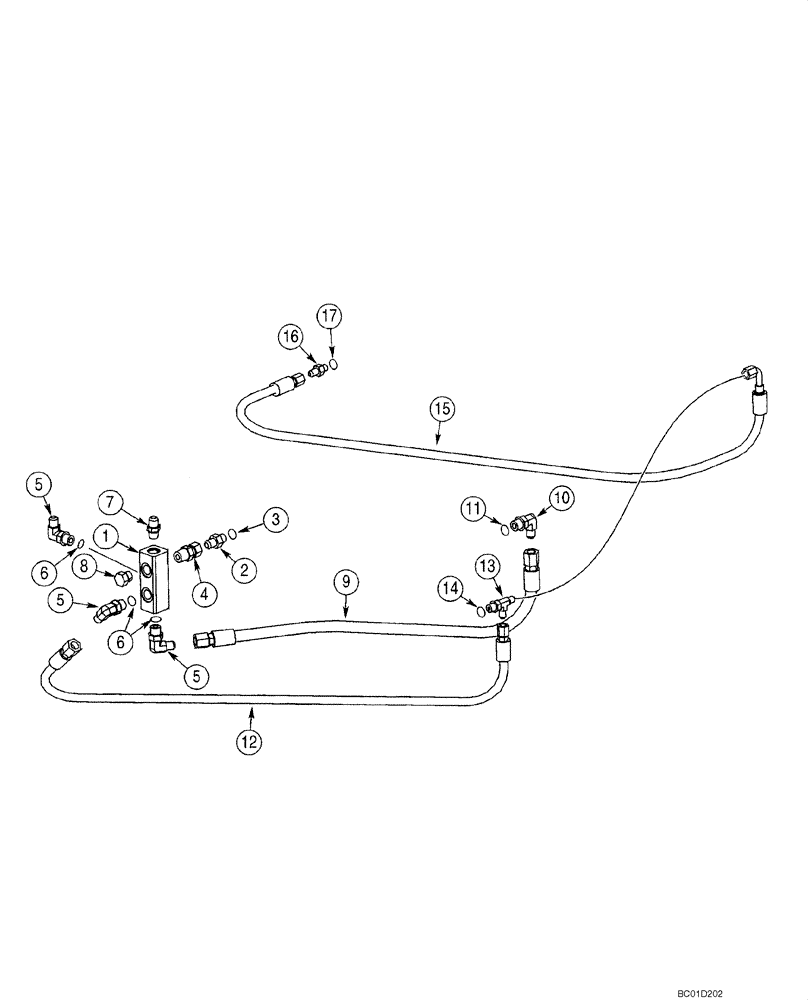

Запчасти Case IH 60XT (07-04) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

1

400615A2

JUNCTION BOX

Return

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 3

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

218-959

HYD CONNECTOR,37 Degree, Sw, 9/16"-18, Fem x 9/16"-18 NPT, Male, Brass

LH Motor Case Drain

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 6

3шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

3/4 fl x 3/8 PT; Attaches To 391752A1; See Figure 06-04 (Ref 9)

1шт.

8

76349

PLUG,9/16" - 18 ORB

1шт.

9

394532A1

HOSE ASSY.

654 mm (25-3/4 in.), Brake Valve Charge Pressure

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Incl. 11, Right Hand Motor Case Drain

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

427475A1

HOSE ASSY.

1100 mm (43-5/16 in.); Brake Drain

1шт.

13

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl. 14; Right Hand Motor Brake

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

427474A1

HOSE ASSY.

1100 mm (43-5/16 in.); Brake Drain

1шт.

16

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 17; LH Motor Brake

1шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
