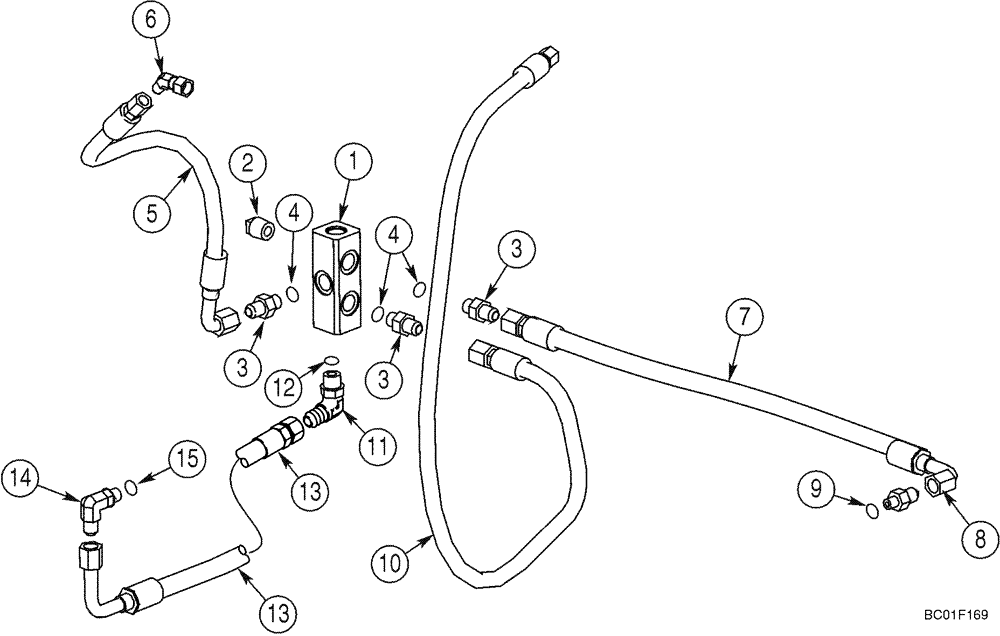

Запчасти Case IH 60XT (07-03) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

1

400615A2

JUNCTION BOX

Brake Pressure

1шт.

2

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

3/8 PT

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 4

3шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

395817A2

HOSE ASSY.

635 mm (25 in.); Servo Supply

1шт.

6

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

Not Used On European 70XT; 60XT, If Used

1шт.

7

394535A2

HOSE ASSY.

495 mm (19-1/2 in.); Brake Supply; Models With Manual Brake Release; See Figure 07-06, Ref 16

1шт.

8

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

395819A2

HOSE ASSY.

1100 mm (43-5/16 in.); Servo Supply

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

394534A2

HOSE ASSY.

360 mm (14-3/16 in.); Brake Supply; Models with Manual Brake Release; See Figure 07-06, Ref 15

1шт.

14

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

LH Brake Release Port; Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
