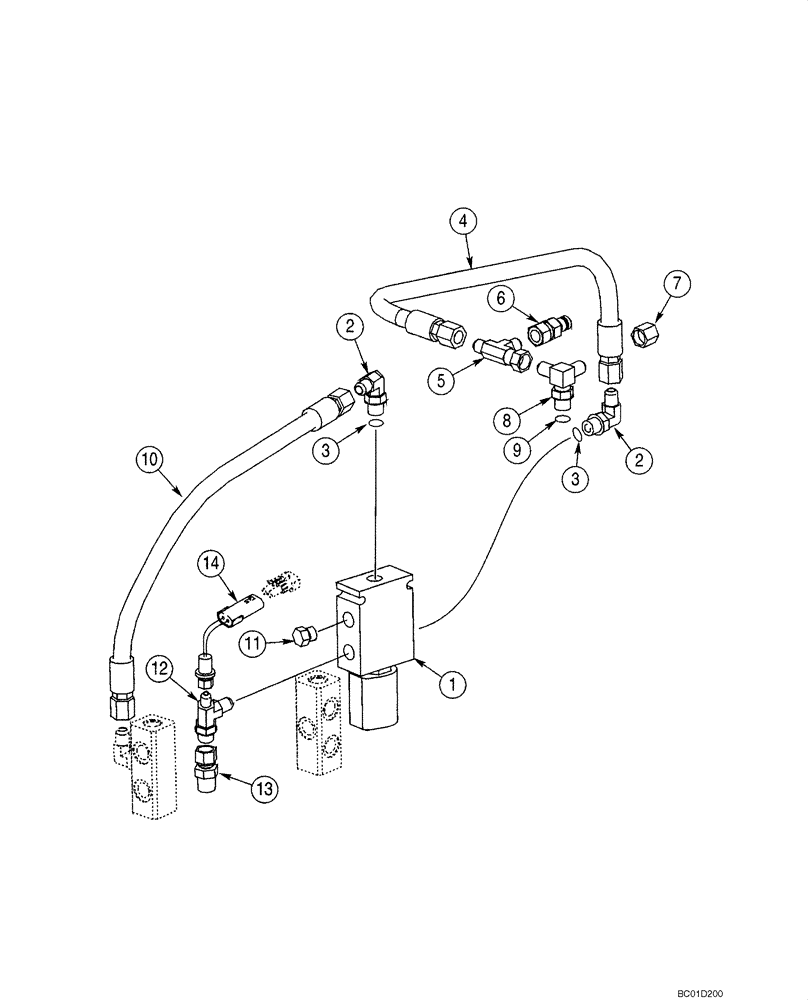

Запчасти Case IH 60XT (07-02) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

1

187505C91

VALVE

Solenoid Valve; See Figure 08-23

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 3

2шт.

4

394532A1

HOSE ASSY.

654 mm (25-3/4 in); Brake Valve Charge Pressure; If Used

1шт.

4

441462A1

HOSE ASSY.

510 mm (20-1/16 in); Brake Valve Charge Pressure

1шт.

5

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

6

101792A1

COUPLING

1шт.

7

218-754

CAP,37 Degree, 9/16"-18

1шт.

8

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 9

1шт.

10

394533A1

HOSE ASSY.

592 mm (23-5/16 in); Brake Valve to Case Drain; Attaches To 218-5105; See Figure 07-04, Ref 5

1шт.

11

76349

PLUG,9/16" - 18 ORB

Incl. 237-6006

1шт.

12

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

7/16 fl x 9/16 fl x Or

1шт.

13

218-959

HYD CONNECTOR,37 Degree, Sw, 9/16"-18, Fem x 9/16"-18 NPT, Male, Brass

Attaches to 400615A2; See Figure 07-03, Ref 1

1шт.

14

251905A2

SWITCH

Attaches To 375633A8; See Figure 04-09; If Used

1шт.

14

443897A1

SWITCH

Attaches To 375633A8; See Figure 04-09

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
