Запчасти Case IH 40XT (06-19) - PUMP, TANDEM (REAR) 404281A2 (06) - POWER TRAIN

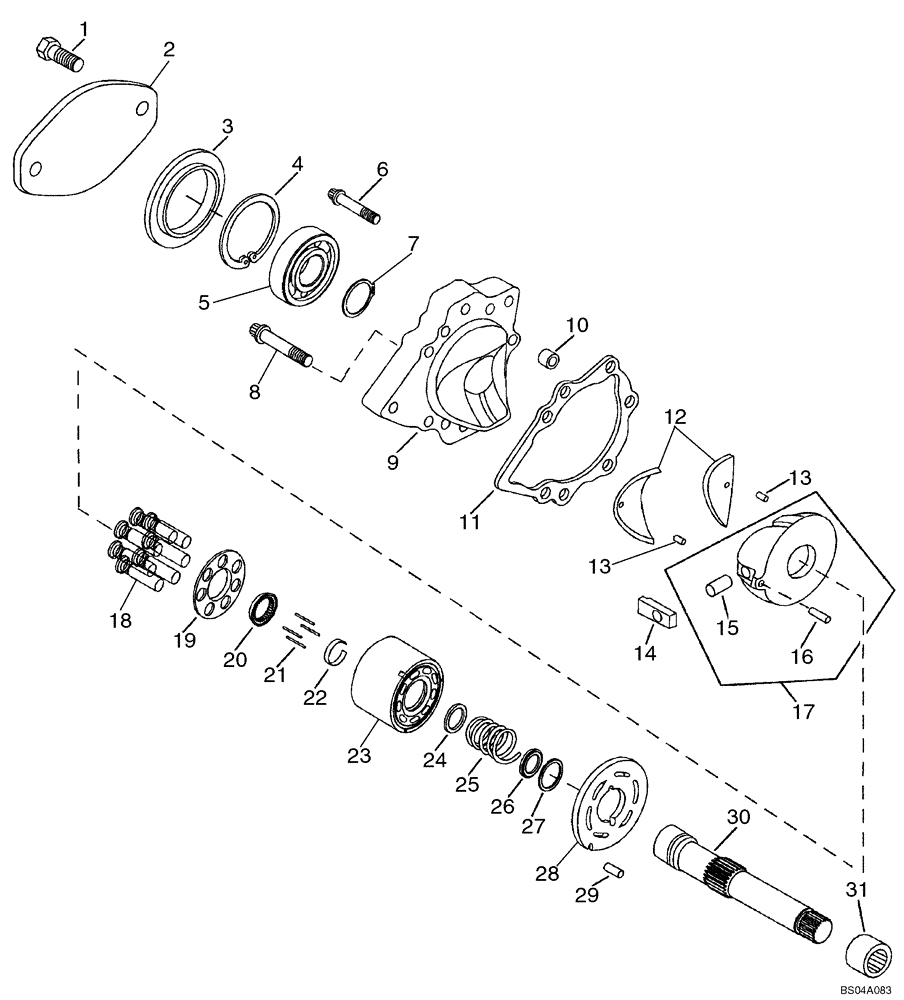

Схема запчастей Case IH 40XT - (06-19) - PUMP, TANDEM (REAR) 404281A2 (06) - POWER TRAIN
8
19
15
16
30
12
3
7
5
17
25
9
22
11
1
28
20
29
18
14
6
2
21
26
10
31
27
4
24
13
13
23

Артикул

Название

Примечание

Количество

404281A2

PUMP,46 CC

Tandem; Incl. 1 - 31, Also Incl. Parts On Figure 06-14 - 06-19

1шт.

87298032

REMAN-HYD PUMP

Remanufactured PUMP

1шт.

87298033

CORE-HYDRAULIC PUMP

Return Number, PUMP

1шт.

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

H438063

LARGE PLATE

PLATE, LARGE

1шт.

3

251661A1

SEAL

1шт.

4

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

5

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

Ball

1шт.

6

223680A1

SPECIAL BOLT,Torx, 3/8"

3/8 in.

1шт.

7

100-11137

SNAP RING,#137, Ext

1шт.

8

223677A1

SCREW,Torx, 7/16"

7/16 in.

6шт.

9

H436705

COVER

1шт.

10

N13994

SPACER

Pin, Roll

1шт.

11

H436704

GASKET,0.79mm Thk

Housing

1шт.

12

193488A1

BEARING LINER

Journal

2шт.

13

193494A1

PIN, ROLL

2шт.

14

N13224

SLEEVE

Retainer

1шт.

178632A1

COVER

Plate Assy; Incl. 16 - 18

1шт.

15

N13254

PIN

1шт.

16

324610A1

PIN

1шт.

17

NSS

NOT SOLD SEPARAT

Plate

1шт.

402366A1

KIT

Cylinder Block; Component Parts Not Serviced Separately; Incl. 18 - 27

1шт.

18

NSS

NOT SOLD SEPARAT

Piston

7шт.

19

NSS

NOT SOLD SEPARAT

Retainer

1шт.

20

NSS

NOT SOLD SEPARAT

Guide

1шт.

21

NSS

NOT SOLD SEPARAT

Pin

3шт.

22

NSS

NOT SOLD SEPARAT

Ring Retaining

1шт.

23

NSS

NOT SOLD SEPARAT

Block Cylinder

1шт.

24

NSS

NOT SOLD SEPARAT

Washer

1шт.

25

NSS

NOT SOLD SEPARAT

Spring

1шт.

26

NSS

NOT SOLD SEPARAT

Washer

1шт.

27

NSS

NOT SOLD SEPARAT

Ring Retaining

1шт.

28

128929A1

LARGE PLATE

PLATE, LARGE

1шт.

29

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

30

N13222

SHAFT

1шт.

31

1277297C1

NEEDLE BEARING

1шт.

Выбрано товаров: 36
