(06-14) - PUMP, TANDEM (FRONT) 404281A2

Запчасти Case IH 40XT (06-14) - PUMP, TANDEM (FRONT) 404281A2 (06) - POWER TRAIN

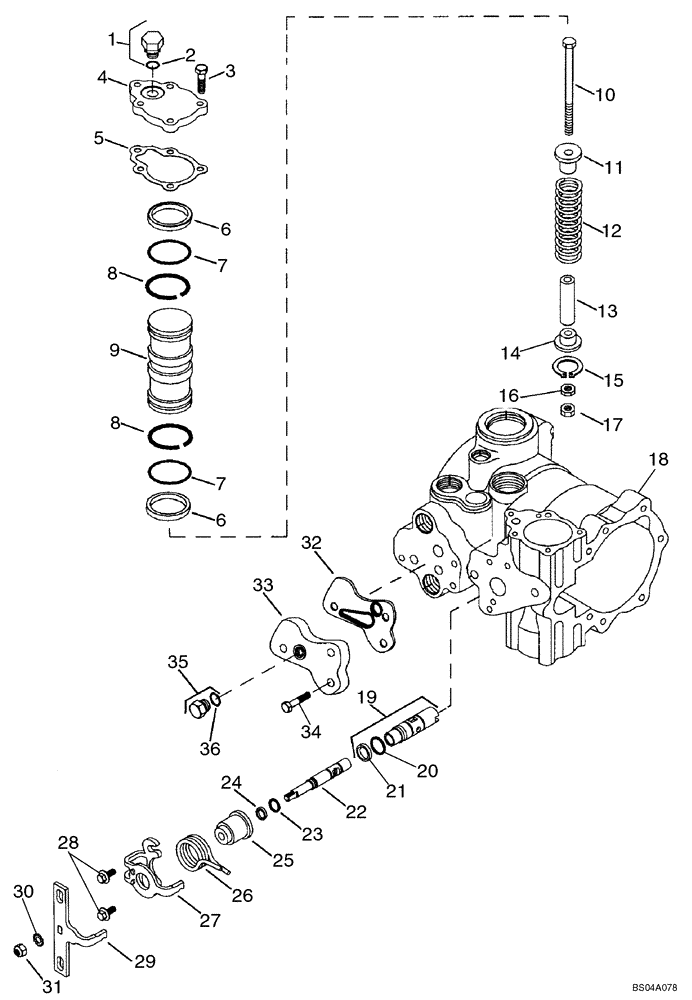

Схема запчастей Case IH 40XT - (06-14) - PUMP, TANDEM (FRONT) 404281A2 (06) - POWER TRAIN
30
12
14
23
5
7
20
8
1
3
17
13
24
19
33
29
36
34
31
11
2
27
16
18
26
6
35
4
7
32
10
21
28
15
9
25
22
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

404281A2

PUMP,46 CC

Tandem; Incl. 1 - 36; Also Incl. Parts On Figure 06-14 - 06-19

1шт.

87298032

REMAN-HYD PUMP

Remanufactured PUMP

1шт.

87298033

CORE-HYDRAULIC PUMP

Return No, PUMP

1шт.

1

76349

PLUG,9/16" - 18 ORB

Incl. 2

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

5шт.

4

H436053

COVER

Servo

1шт.

5

N14063

GASKET

1шт.

H673773

KIT

Incl. 6, 7

1шт.

6

N14668

RING, PISTON

2шт.

7

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

8

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

2шт.

9

H435772

PISTON

1шт.

10

370531A1

SCREW

1шт.

11

361700A1

GUIDE

1шт.

12

N13226

SPRING

1шт.

13

N13242

SLEEVE

1шт.

14

N13241

GUIDE,1.292" OD

1шт.

15

N13255

RING

1шт.

16

425-116

NUT,3/8" - 24, Gr 5

1шт.

17

324604A1

NUT,Lock

1шт.

18

402364A1

HOUSING

Incl. Figure 06-15 Ref 35, 36, Figure 06-16 Ref 2, 4

1шт.

19

110671A2

SLEEVE

Incl. 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

21

86993483

BACK-UP RING,0.643"

.643; Backup

1шт.

22

86993477

SPOOL

1шт.

23

86993475

O-RING

1шт.

24

86993484

BACK-UP RING,0.390"

1шт.

25

NSS

NOT SOLD SEPARAT

Part Number Unavailable At Time Of printing

1шт.

26

407060A1

SPRING

1шт.

27

436416A1

BRACKET

Neutral Return

1шт.

28

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

2шт.

29

86993478

HANDLE

Control

1шт.

30

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

31

H436054

SPECIAL NUT,Lock, 5/16" - 18

1шт.

32

303709A1

GASKET

Suction, Filter Adapter

1шт.

33

101462A1

ADAPTER

Suction

1шт.

34

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

35

76349

PLUG,9/16" - 18 ORB

Incl. 36

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

140008A1

GASKET KIT

Repair, Seal; Incl. 06-14 Ref 5, 6, 7, 8, 20, 21, 23, 24, 32; 06-15 Ref 2, 3, 5, 10, 17, 20, 32; 06-16 Ref 3, 29, 35; 06-17 Ref 3, 11, 13, 14; 06-18 Ref 5, 6, 7, 8, 18, 21, 30, 31, 33; 06-19 Ref 11

1шт.
