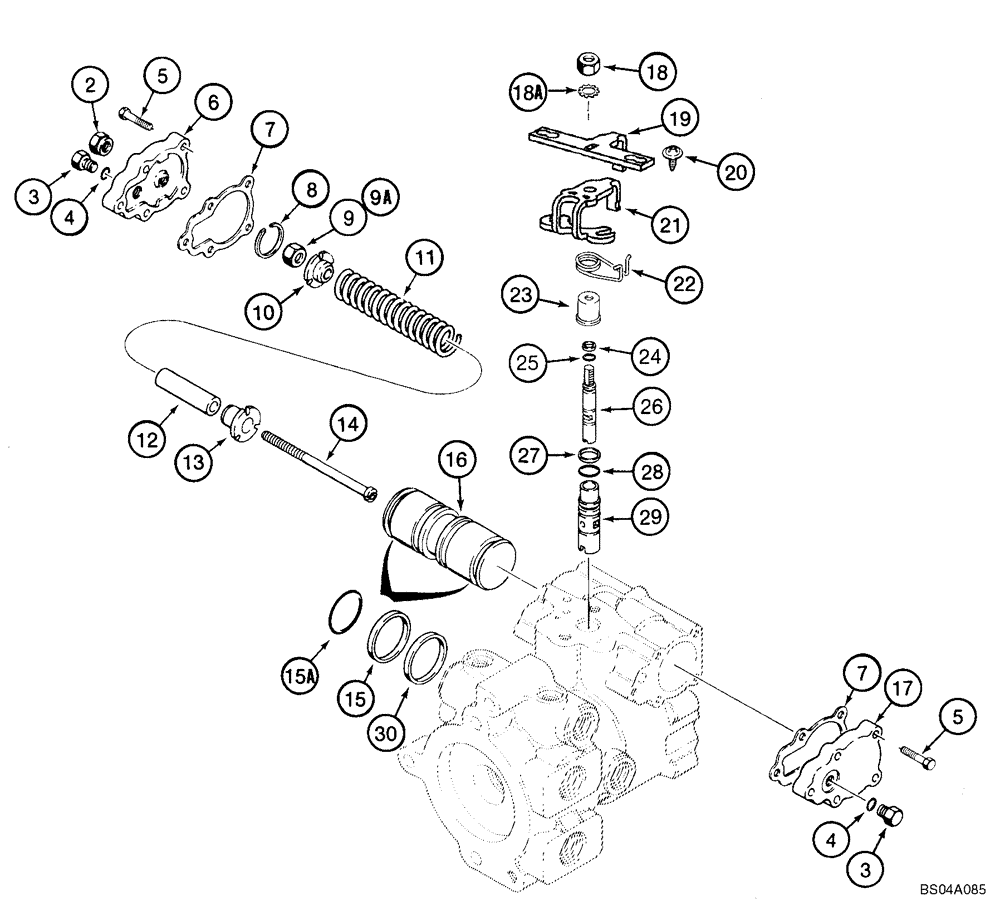

Запчасти Case IH 40XT (06-12) - PUMP, TANDEM (REAR) 404281A1 (06) - POWER TRAIN

404281A1

PUMP

Tandem; Incl. 2 - 30, Also Incl. Parts On Figure 06-08 - 06-13

1шт.

2

N13260

NUT,Inverted Lock

5/8 NF

1шт.

3

76349

PLUG,9/16" - 18 ORB

Incl. 4

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

1/4 x 1-1/4, 8

10шт.

6

H436065

COVER

1шт.

7

N14063

GASKET

Cover

2шт.

8

N13255

RING

Retaining

1шт.

9

425-116

NUT,3/8" - 24, Gr 5

1шт.

9a

324604A1

NUT,Lock

3/8 in

1шт.

10

N13241

GUIDE,1.292" OD

1шт.

11

N13226

SPRING

1шт.

12

N13242

SLEEVE

1шт.

13

N14666

GUIDE,1.292" OD

1шт.

14

370531A1

SCREW

1шт.

H673773

KIT

Incl. 15, 15A

1шт.

15

N14668

RING, PISTON

2шт.

15a

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

16

H435772

PISTON

1шт.

17

H436053

COVER

1шт.

18

H436054

SPECIAL NUT,Lock, 5/16" - 18

1шт.

18a

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

19

436415A1

HANDLE

1шт.

20

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

1шт.

21

436416A1

BRACKET

1шт.

22

407060A1

SPRING

1шт.

23

407059A1

GUIDE

1шт.

24

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Backup

1шт.

25

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

26

361701A1

SPOOL

1шт.

27

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

Backup

1шт.

28

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

29

110671A2

SLEEVE

1шт.

30

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

Ring

1шт.
