Запчасти Case IH 40XT (06-07) - PUMP, GEAR - MOUNTING (06) - POWER TRAIN

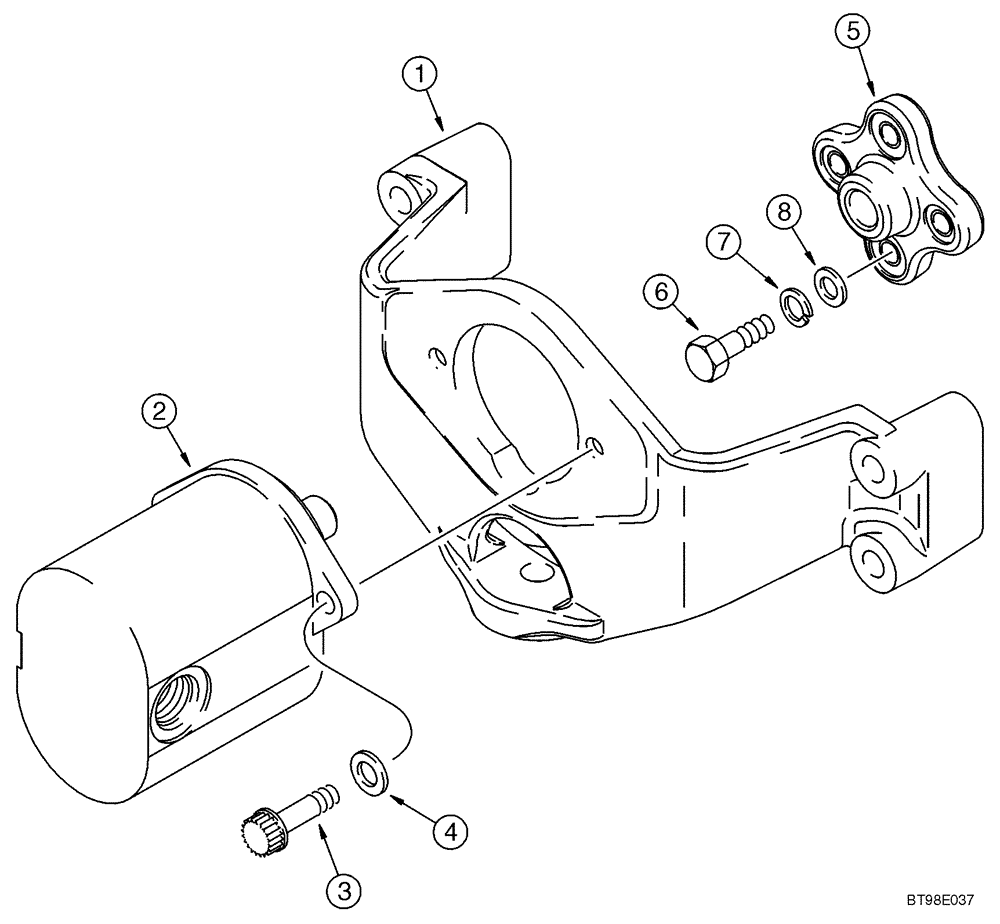

Схема запчастей Case IH 40XT - (06-07) - PUMP, GEAR - MOUNTING (06) - POWER TRAIN
6
7
5
8
3
1
4
2

Артикул

Название

Примечание

Количество

1

247421A1

SUPPORT

Engine Mounting; Pump; See Figure 02-07

1шт.

2

298851A2

PUMP

Gear; See Figure 06-20; No Longer Available, Order 87406812

1шт.

2

87406812

PUMP

Gear; Component Parts Not Available At Time Of Printing; Incl. 87413478, Seal Kit

1шт.

87413478

SEAL KIT

1шт.

2

87442244

PUMP

Gear Pump; Component Parts Not Available At Time Of Printing; Replaces 87406812

1шт.

3

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

2шт.

5

131693A1

FLEXIBLE COUPLING,13T

1шт.

6

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16 x 1-1/2

4шт.

7

492-11044

LOCK WASHER,7/16"

4шт.

8

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

Выбрано товаров: 11
