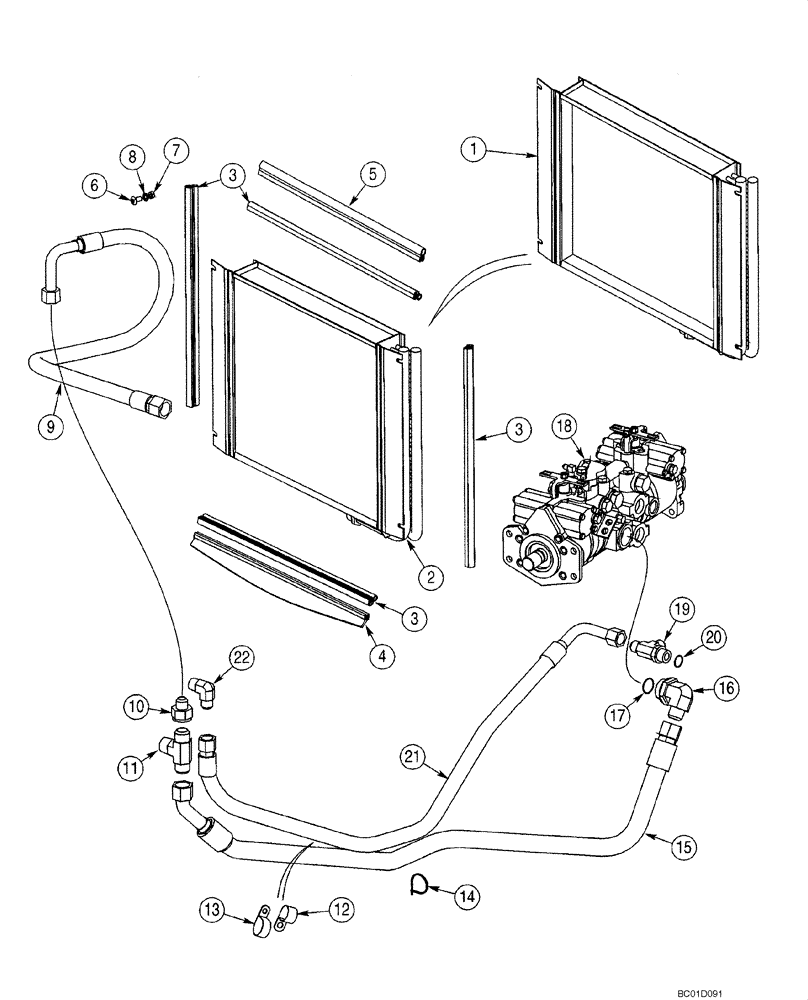

Запчасти Case IH 40XT (06-01) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (06) - POWER TRAIN

REF

INSTRUCTION

OIL COOLER TO TANDEM PUMP AND TANK

1шт.

1

386925A1

COOLER, OIL

1шт.

2

385707A1

COOLER, OIL

Models With High Flow Gear; See Figure 08-23

1шт.

3

230745A1

RUBBER SEAL,512mm L

512 mm

4шт.

4

410860A1

SEAL

512 mm

1шт.

5

D128489

LINING

496 mm, 19-1/2 in.

1шт.

6

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

832-41408

NUT,M8 x 1.25, Cl 10

M8

4шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

9

407719A2

HOSE ASSY.,19.05mm ID x 1347mm L

1347 mm, 53-1/32 in.; Oil Cooler Return

1шт.

10

218-1705

REDUCER,37º, 1 5/16"-12, Fem x 1 1/16"-12 Male

1 x 3/4

1шт.

11

218-558

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

Models Without High Flow Gear; See Figure 08-20, Ref. 16

1шт.

12

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

13

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15".

1шт.

15

395203A1

HOSE ASSY.,25.4mm ID x 1430mm L

1430 mm, 56-5/16 in.; Cooler To Pump Inlet

1шт.

16

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

1-5/16 fl x 1-5/8 or, 90°; Incl. Ref. 18

1шт.

17

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

18

404281A2

PUMP,46 CC

Tandem; See Figure 06-08

1шт.

18

87298032

REMAN-HYD PUMP

Remanufactured PUMP

1шт.

18

87298033

CORE-HYDRAULIC PUMP

Return No, PUMP

1шт.

19

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x fl x or, Attaches To 391752A1; See Figure 06-03 and 06-04; Incl. 21

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

404629A1

HOSE ASSY.

1275 mm, 50-3/16 in.; Pump Case Drain To Tank

1шт.

22

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Models Without High Flow Gear; See Figure 08-23, Ref. 1

1шт.
