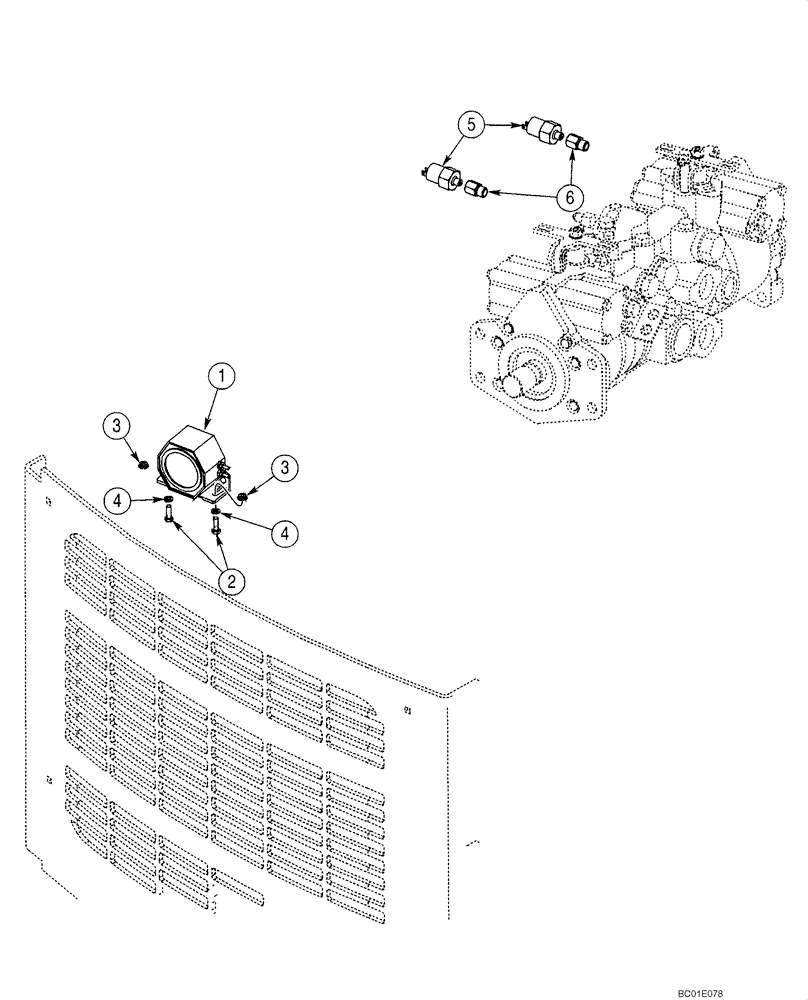

Запчасти Case IH 40XT (04-30) - ALARM, BACK-UP - MOUNTING (04) - ELECTRICAL SYSTEMS

1

324299A1

ALARM

Backup; Production Only; For Service Order 325258A1

1шт.

2

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

3

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

Replaces 895-11006

2шт.

5

405418A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm Control

2шт.

6

D137424

FITTING

9/16 NF or x 1/8

2шт.
