(04-21) - ACCESSORY POWER OUTLET, EUROPEAN MODELS

Запчасти Case IH 40XT (04-21) - ACCESSORY POWER OUTLET, EUROPEAN MODELS (04) - ELECTRICAL SYSTEMS

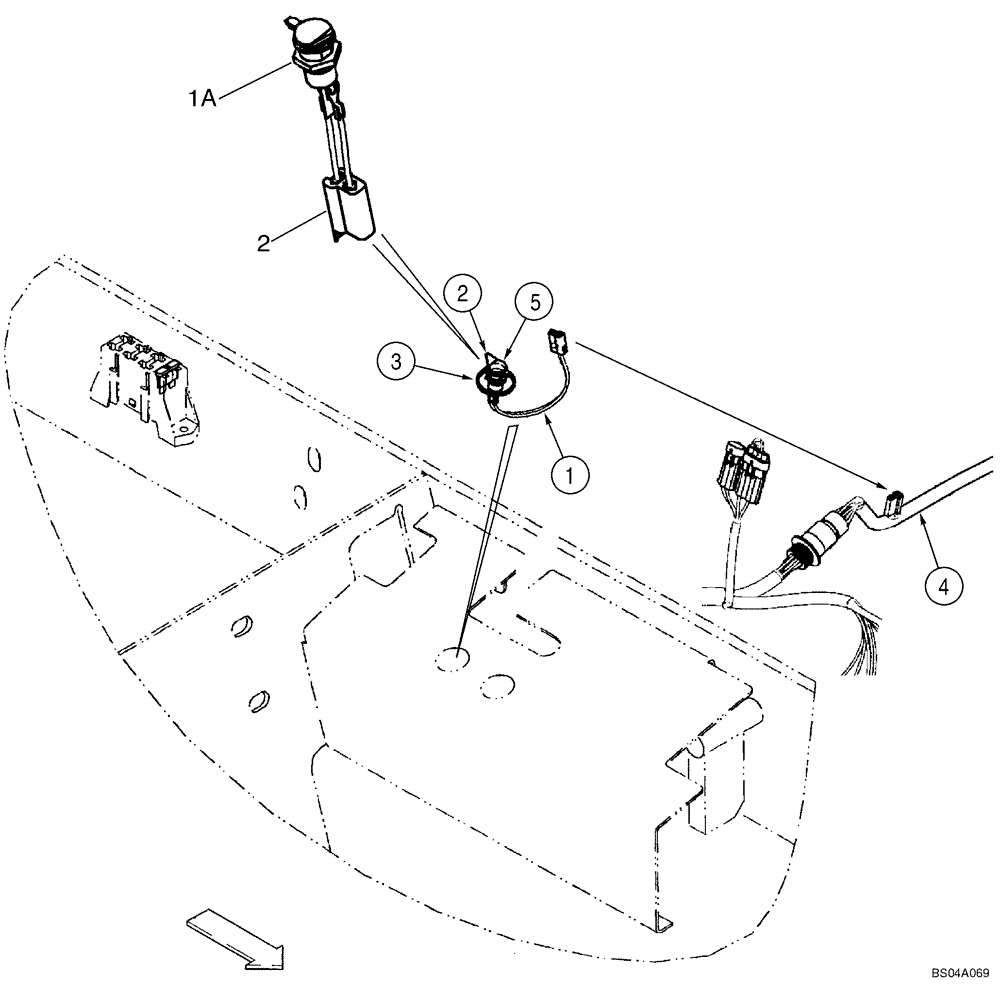

Схема запчастей Case IH 40XT - (04-21) - ACCESSORY POWER OUTLET, EUROPEAN MODELS (04) - ELECTRICAL SYSTEMS
1
4
2
3
5
1a
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

276912A1

HARNESS

Accessory Socket; If Used

1шт.

1a

445092A1

WIRE HARNESS

HARNESS Accessory Socket; Replaces 276912A1; If Used

1шт.

2

142211A1

SOCKET

CONNECTOR Light Receptacle

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

1шт.

4

375634A4

HARNESS

Cab Options; See Figure 04-10

1шт.

5

H426809

SPACER

Used With Ref 1

1шт.

5

438415A1

WASHER Replaces H426809; Used With Ref 1

2шт.

A149800

FUSE,10 Amp

10 amp; See Figure 04-14

1шт.
