Запчасти Case IH 40XT (04-11) - SWITCH MOUNTING - OPTIONS PANEL (04) - ELECTRICAL SYSTEMS

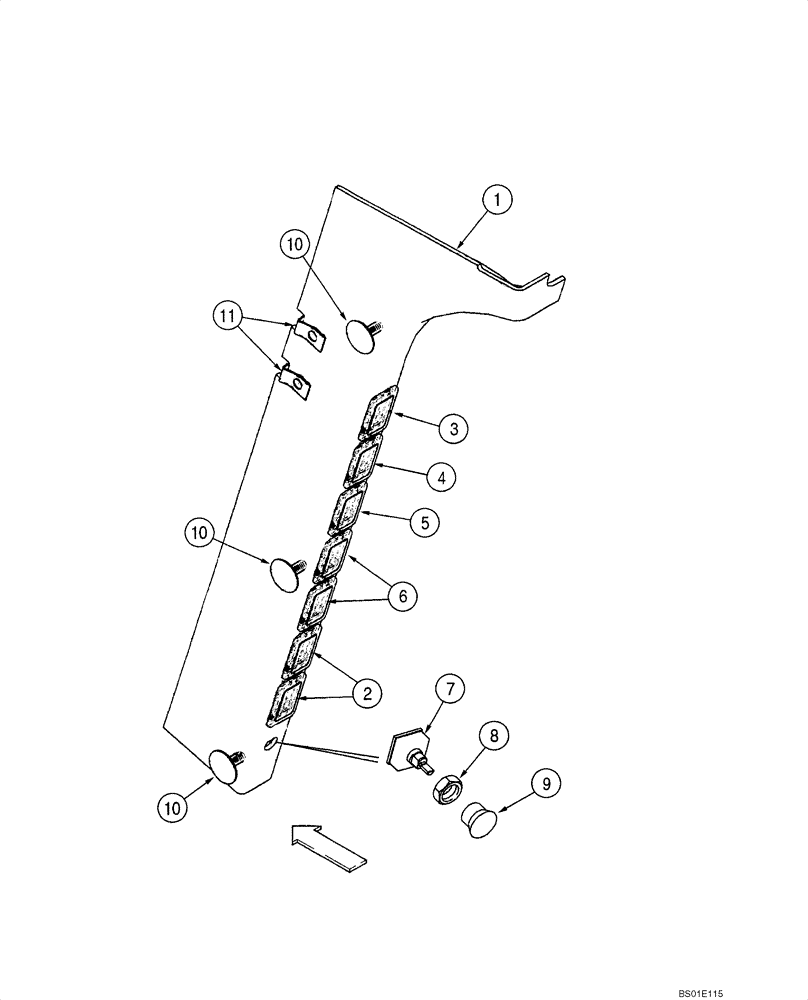

Схема запчастей Case IH 40XT - (04-11) - SWITCH MOUNTING - OPTIONS PANEL (04) - ELECTRICAL SYSTEMS
9
1
3
2
7
8
11
10
5
10
10
4
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Harness; Cab Options; See Figure 04-10; Chassis Options; See Figure 04-09

1шт.

1

376599A4

PANEL

Switch Mounting; For Decal 407652A1; See Figure 09-59

1шт.

2

86000535

PLUG,1.427" x .62", Plastic

Cover Switch Hole

1шт.

3

379877A1

SWITCH

Models With Hydraulic Coupler; See Figure 08-07

1шт.

4

411173A1

SWITCH

Rocker; Models With Dual Self Level; See Figure 08-03

1шт.

5

133714A1

BEACON SWITCH

Rocker; Models With Rotating Beacon; See Figure 04-25

1шт.

6

223837A1

SWITCH

Rocker; Models With Front Auxilliary Electric; See Figure 04-19

2шт.

7

168822C2

SWITCH

Blower Motor; Models With heater; See Figure 09-35, 09-36

1шт.

8

109311H

JAM NUT

7/16 NF

1шт.

9

111282C1

KNOB

KNOB

1шт.

10

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

FASTENER

3шт.

11

833-40306

SPRING NUT,M6, U

3шт.

Выбрано товаров: 12
