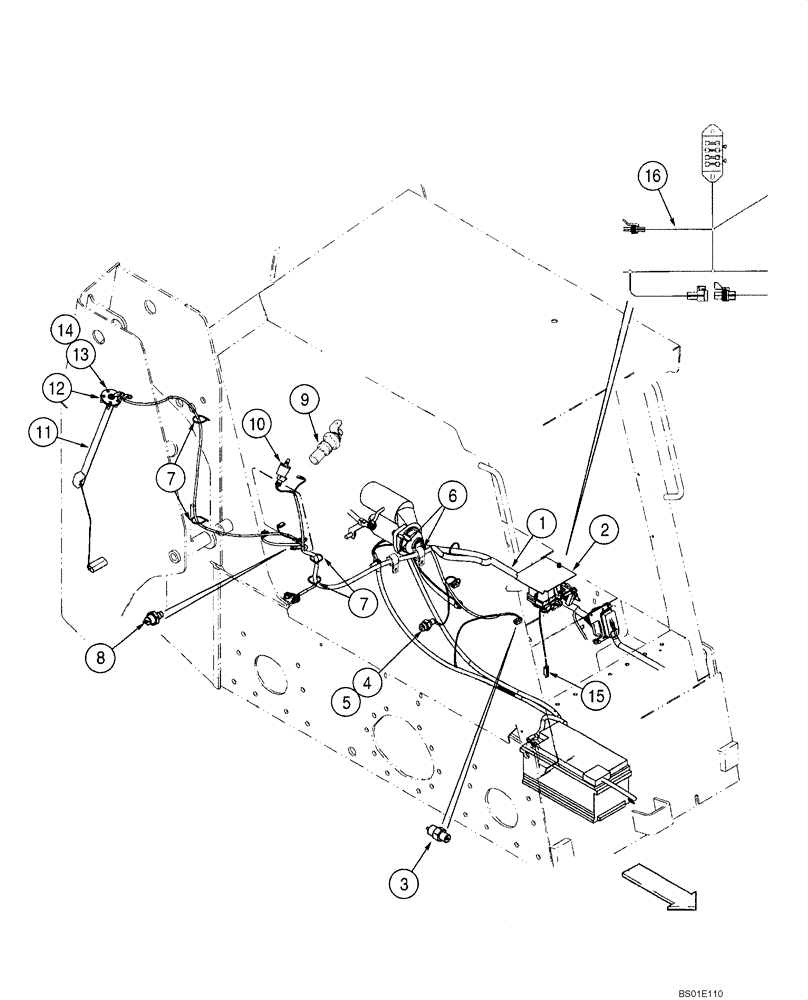

Запчасти Case IH 40XT (04-06) - HARNESS - CHASSIS, MAIN (04) - ELECTRICAL SYSTEMS

1

373663A7

HARNESS

Chassis

1шт.

2

REF

INSTRUCTION

BLOCK Main Fuse And Relay; See Figure 04-13

1шт.

3

405418A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm Control; See Figure 04-30

2шт.

4

313590A1

PLUG

1шт.

5

H439301

SWITCH

Hydraulic Temperature; Lower Case Drain Port Of Pump

1шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

(19 mm); Replaces 515-23143

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

4шт.

8

277016A1

PRESSURE SWITCH

Oil Check Port, M10

1шт.

9

A77616

GLOW PLUG

ELEMENT Starting Aid; Models With Thermostart; See Figure 02-06

1шт.

10

293797A1

RESTRICTION SWITCH

Air; See Figure 02-04

1шт.

11

376843A4

SENDER UNIT

SENDER Fuel Level

1шт.

12

528359R4

GASKET,3.05mm Thk

1шт.

13

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

5шт.

14

196985A1

ROD,THREADED

THREADED ROD Insert

5шт.

15

414647A1

HARNESS

Tandem Pump Neutral Override; Models Without Options Harness; Attaches To 187505C91; See Figure 08-18

1шт.

16

375633A8

HARNESS

Chassis Options; See Figure 04-09

1шт.
