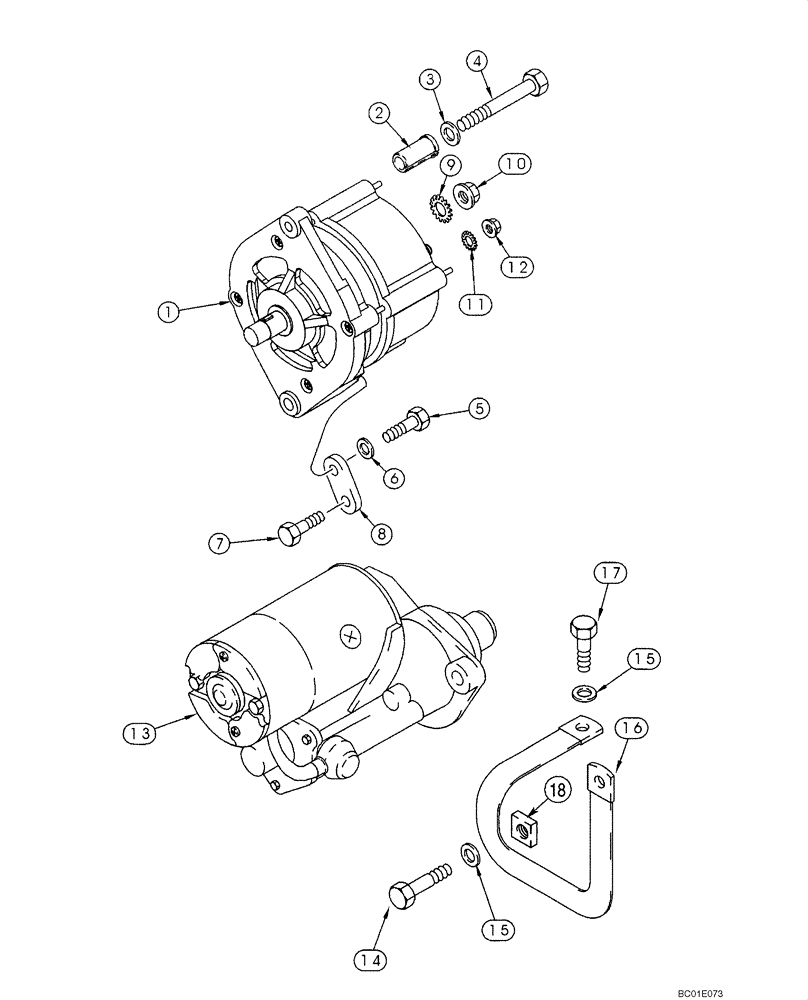

Запчасти Case IH 40XT (04-03) - MOUNTING - STARTER AND ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

A187873

ALTERNATOR,12V, 65A

12V, 65 amp; See Figure 04-02

1шт.

1

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

2

J902469

SPACER

1шт.

4

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

J903089

SUPPORT

North American Models

1шт.

8

1998702C1

SUPPORT

European Models

1шт.

9

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

10

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

11

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

12

825-5145

NUT,M5, Flg Ser

1шт.

13

86982709

STARTER MOTOR,12V, 2.5kW

See Figure 04-01; Replaces 1987559C1

1шт.

13

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 86982709

1шт.

13

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

13

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

13

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

14

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

16

D73383

STRAP

If Used

1шт.

16

512306

GROUND CABLE

Replaces D73383; If Used

1шт.

17

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

If used

1шт.

17

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

If Used

1шт.

18

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.
