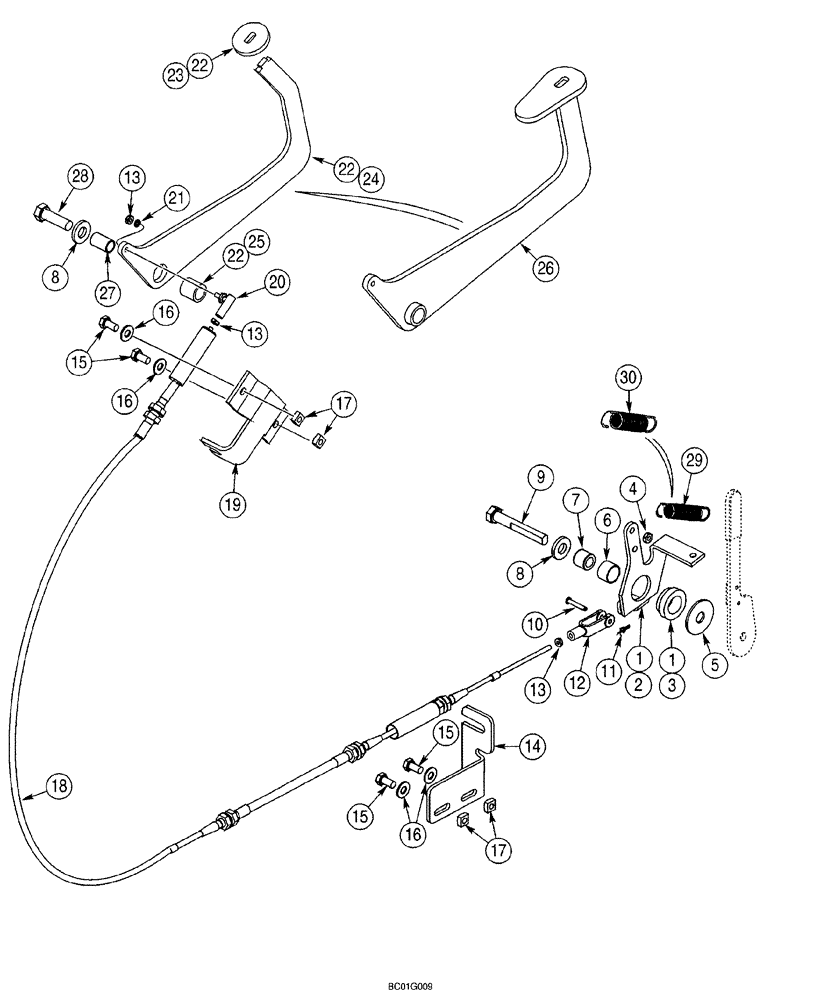

Запчасти Case IH 40XT (03-03) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM

1

376951A2

CONTROL

ASSY Foot Throttle; Incl. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER control

1шт.

3

NSS

NOT SOLD SEPARAT

BOSS

1шт.

4

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

5

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

17/32 x 1-3/4 x 3/32

1шт.

6

186905A1

BUSHING

BUSHING

1шт.

7

187035A2

SLEEVE

SLEEVE

1шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

9

376948A1

BOLT

M12 x 80

1шт.

10

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

PIN 16 x 1

1шт.

11

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER

1шт.

12

379301A1

CLEVIS,#10 - 32

1шт.

13

225-14210

NUT,#10-32

3шт.

14

387007A2

BRACKET

1шт.

15

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

17

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

4шт.

18

387014A1

CABLE

ASSY Component Parts Not Serviced Seperately

1шт.

19

387006A1

BRACKET

1шт.

20

L12437

BALL JOINT,#10 - 32 x 7/8"

1шт.

21

492-11010

LOCK WASHER,#10

1шт.

22

387010A2

PEDAL ASSY.

North American Models; Incl. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

PEDAL

1шт.

24

NSS

NOT SOLD SEPARAT

LEVER

1шт.

25

NSS

NOT SOLD SEPARAT

BOSS

1шт.

26

431775A1

PEDAL ASSY.

European Models; Component Parts Not Serviced Seperately

1шт.

27

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

1шт.

28

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

29

D124939

SPRING

North American Models

1шт.

30

434778A1

TENSION SPRING

European Models

1шт.
