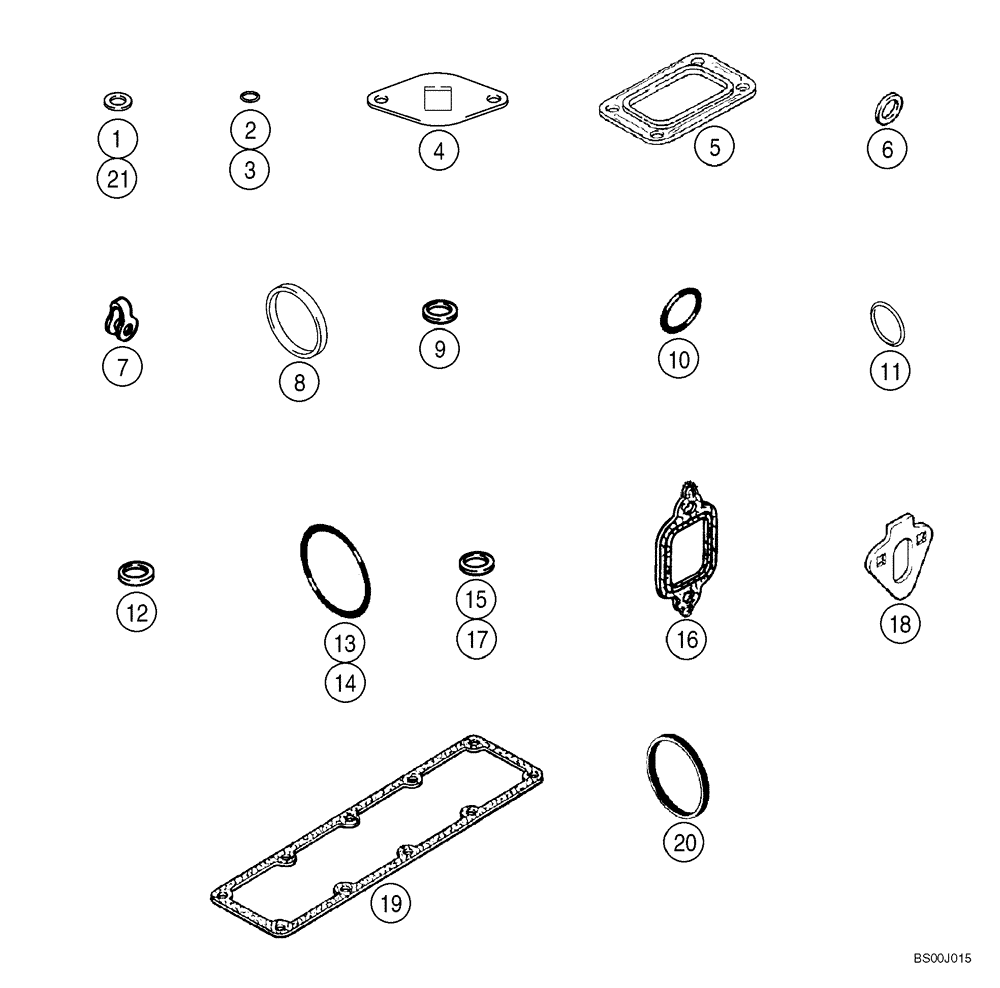

Запчасти Case IH 40XT (02-24) - GASKET KIT, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

REF

INSTRUCTION

4T-390 Emissions Certified Engine

1шт.

A77993

GASKET KIT

Basic Service Engine; Incl. 1 - 21

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

3

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

4

J937706

GASKET,0.79mm Thk

2шт.

5

J919369

GASKET,0.5mm Thk

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

7

J903380

SEAL

4шт.

8

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

9

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm; Replaces J906659

4шт.

10

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID

1шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

4шт.

13

J910517

O-RING

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

15

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm

4шт.

16

J927154

GASKET,0.38mm Thk

4шт.

17

J930324

SEAL

0.5 mm

4шт.

18

J939258

GASKET,1.21mm Thk

Replaces J931059

2шт.

19

J938153

MANIFOLD GASKET,0.8mm Thk

1шт.

20

J935032

SEAL

1шт.

21

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm; Replaces J935171

4шт.
