Запчасти Case IH 40XT (02-22) - GASKET KIT, CYLINDER BLOCK (02) - ENGINE

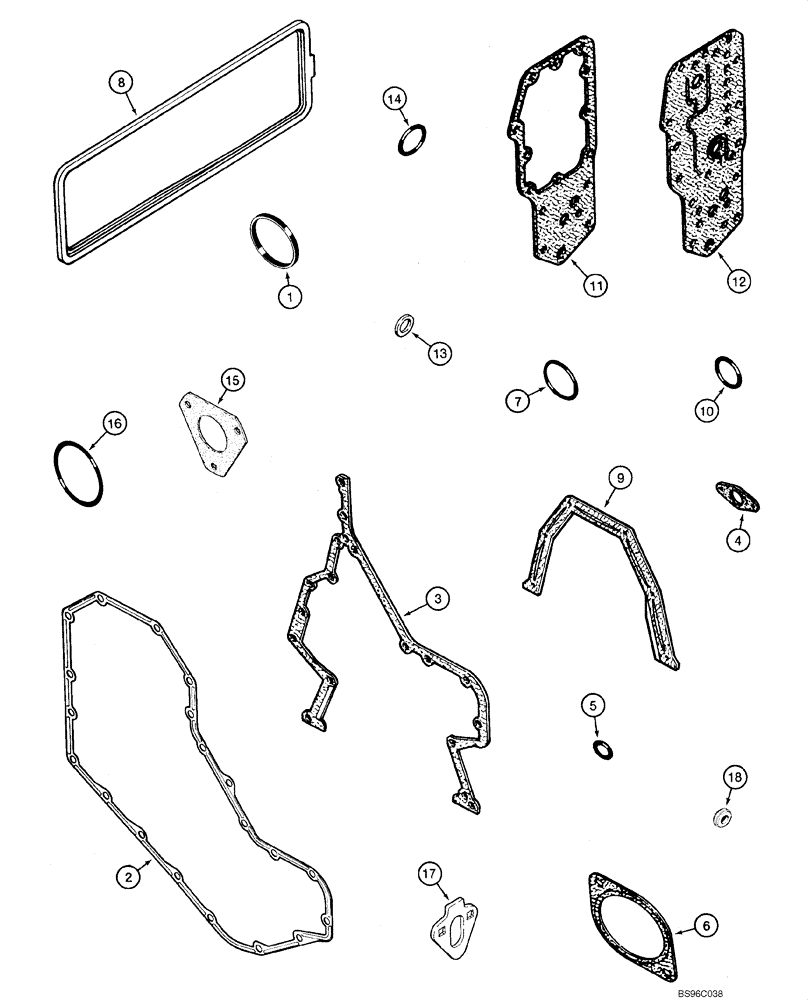

Схема запчастей Case IH 40XT - (02-22) - GASKET KIT, CYLINDER BLOCK (02) - ENGINE
12
9
10
4
5
6
11
3
17
16
2
7
1
15
18
14
8
13

Артикул

Название

Примечание

Количество

A77860

GASKET KIT

Incl. 1 - 18

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-09

1шт.

2

J914385

GASKET,1.02mm Thk

Cover; No Longer Included in A77860; Order A77993, See Figure 02-22, Ref 15

1шт.

3

J938156

GASKET,0.79mm Thk

Housing; See Figure 02-09

1шт.

4

J905595

GASKET

Mounting

1шт.

5

J913994

O-RING

See Figure 02-09

1шт.

6

J929751

GASKET

Plate; See Figure 02-09; Replaces J929751

1шт.

7

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16; Not Used In This Application; Replaces 238-5341

1шт.

8

J283767

GASKET,7.4mm Thk

Cover; See Figure 02-16

1шт.

9

J938159

GASKET

Mounting; See Figure 02-17

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring, 50 mm ID, See Figure 02-16

1шт.

11

J942914

GASKET

Mounting; See Figure 02-11

1шт.

12

J929792

GASKET,1.2mm Thk

Mounting; See Figure 02-11

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-12

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID; Not Used In This Application

1шт.

15

87413428

GASKET,1.2mm Thk

Mounting; See Figure 03-06; Replaces J931607

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-18

1шт.

17

J939258

GASKET,1.21mm Thk

Mounting; See Figure 03-05; Replaces J931059

1шт.

18

J928759

SEALING WASHER

See Figure 02-16, 03-05

6шт.

Выбрано товаров: 19
