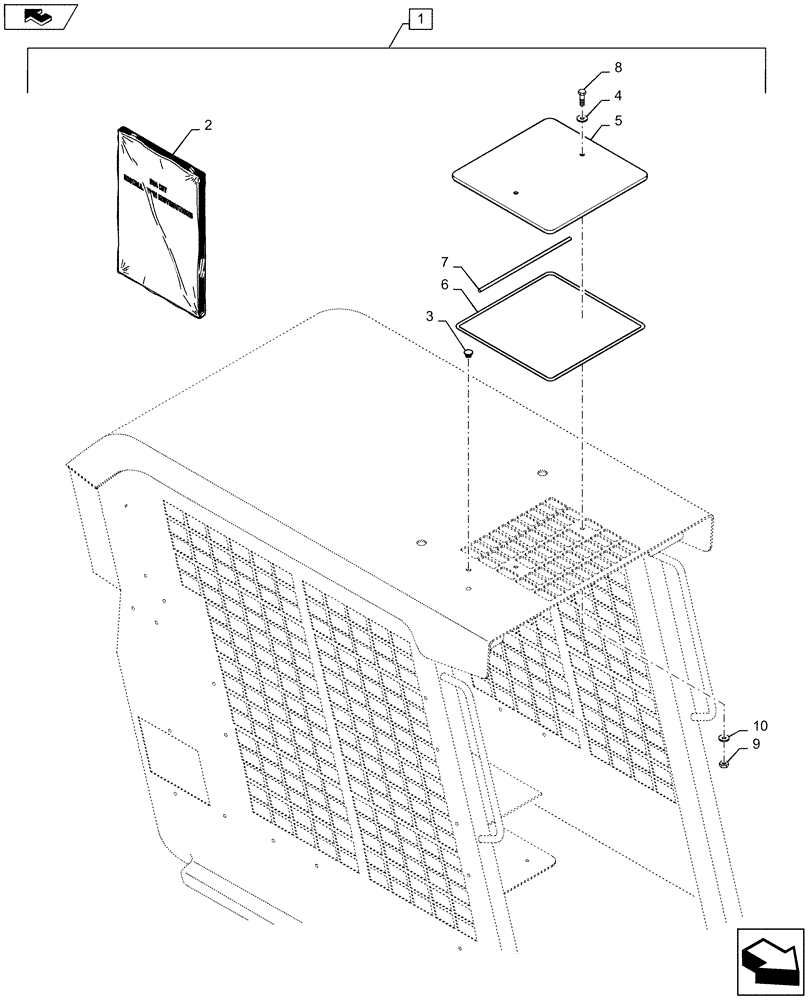

Запчасти Case IH 40XT (88.090.01) - DIA KIT, INSTALLATION, TOP WINDOW (88) - ACCESSORIES

1

429073A1

ATTACHMENT

Installation, Top Window, Incl 2 - 11

1шт.

2

6-42940

Installation

INSTRUCTION

1шт.

3

353-400

PLUG,Dome, .250" hole, Nylon

Black

1шт.

4

394277A1

SEALING WASHER,7mm ID x 18.5mm OD x 3.5mm Thk

1шт.

5

395445A2

WINDOW

Rops Top

1шт.

6

429075A1

SEALING STRIP

Top Window

1шт.

7

429078A1

SEALING STRIP

Top Window

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Carbon Steel, New Holland, 140016

1шт.

11

77886

Polyethylene Bag, Not Shown

1шт.
