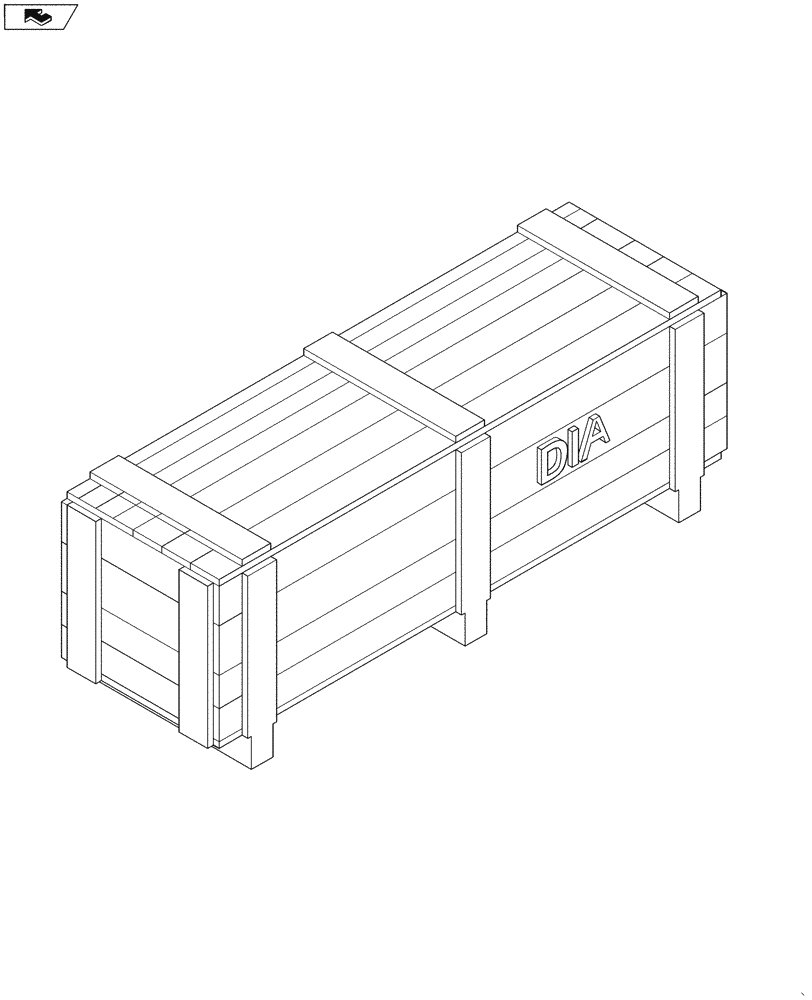

Запчасти Case IH 40XT (88.010.02) - DIA KIT, INSTALLATION HEATER, DELUXE (88) - ACCESSORIES

1

380737A1

SERVICE KIT

Installation, Heater,Deluxe, Incl 2 - 35

1шт.

2

7-18874

Installation

INSTRUCTION

1шт.

3

392235A4

PANEL ASSY.

W, Heat Shield, Heater

1шт.

4

446117A1

Heater, Deluxe With Liner

1шт.

5

412434A2

SUPPORT

Bracket, Throttle Guard

1шт.

6

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

Heater Hose

1шт.

7

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

9

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

Bushing

2шт.

10

301803R1

SHUT-OFF VALVE

2шт.

11

168822C2

SWITCH

1шт.

12

109311H

JAM NUT

1шт.

13

111282C1

KNOB

1шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

17

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

18

248-1370

GROMMET

1шт.

19

396940A1

HARNESS

1шт.

20

A149804

FUSE

Auto Type 30 Amp -Lt Gre

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

22

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

23

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

24

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

26

832-41408

NUT,M8 x 1.25, Cl 10

1шт.

27

324882A1

HARNESS

Dome Light

1шт.

28

325271A1

COURTESY LIGHT

Dome

1шт.

29

430975A2

SEAL

Domelight

1шт.

30

433727A3

PANEL

Heat Shield Barrier

1шт.

31

436865A2

Heater, Deluxe, Bic Assembled Parts

1шт.

32

322783A1

HOLDER

Plate, Dome Light Mount

1шт.

33

444772A1

SLEEVE

Heater Hose

1шт.

34

444775A1

SLEEVE

Heater Hose-Return

1шт.

35

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Clamp, Double

1шт.
