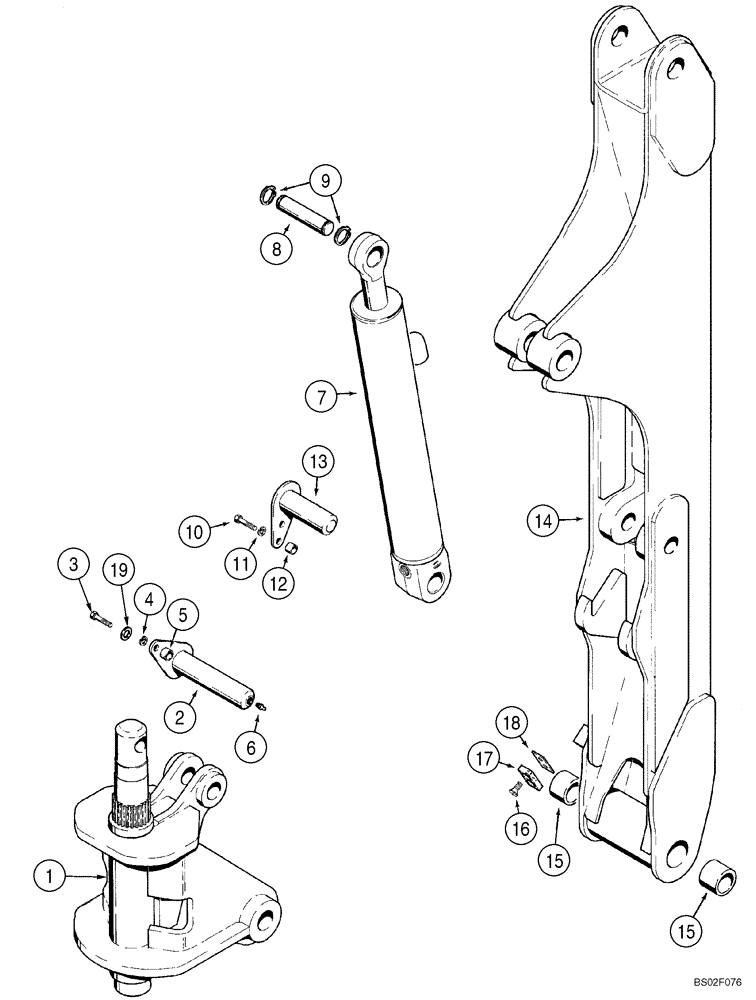

Запчасти Case IH 40XT (09-51) - BACKHOE - SWING TOWER AND BOOM (NORTH AMERICA) D125 (09) - CHASSIS

REF

INSTRUCTION

D125 BACKHOE

1шт.

1

259238A1

PIVOT ASSY.

Without Hose Retaining Rod

1шт.

2

H674111

PIN

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

349192A1

SPACER

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

76 ID x 551 mm strk; Boom; See Figure 08-47

1шт.

8

H437348

PIN,38.15mm OD x 171mm L

1шт.

9

100-16150

SNAP RING,#150, Ext

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

H438253

SPACER

1шт.

13

H674112

PIN

1шт.

H674107

BOOM

Incl. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Boom

1шт.

15

H437317

BUSHING

2шт.

16

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

16 x 1

2шт.

17

H439260

BAR

1шт.

18

H439261

BAR

3шт.

19

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.
