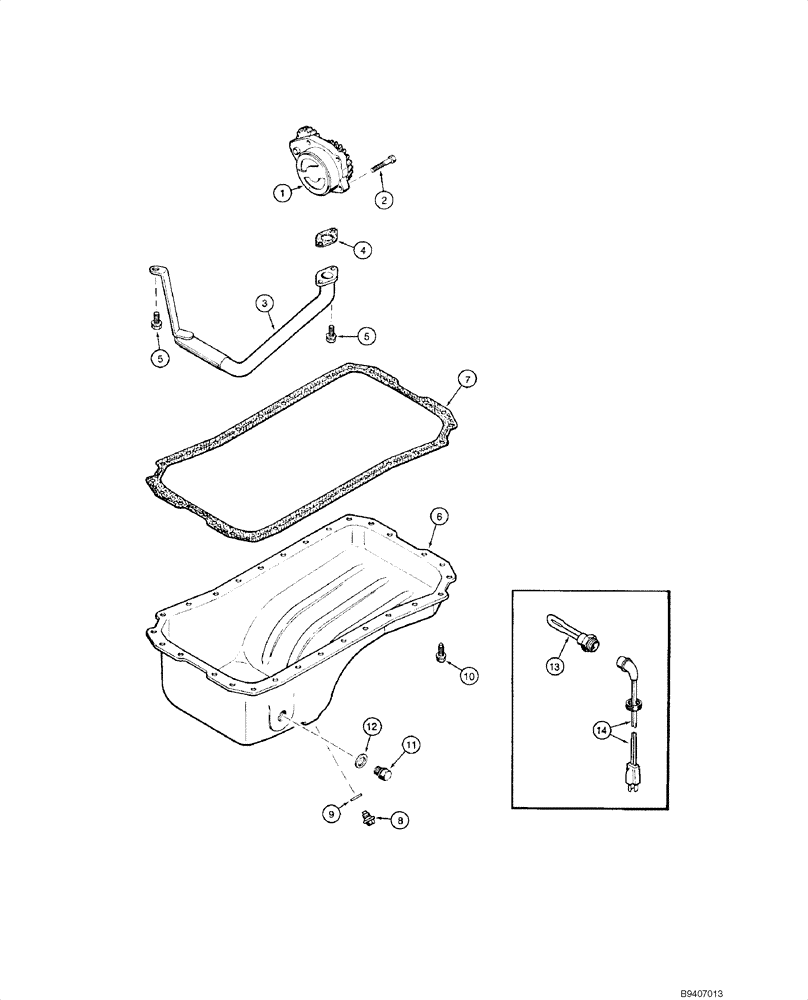

Запчасти Case IH 40XT (02-12) - OIL PUMP, PAN AND HEATER - 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

CASCASJ937028

PUMP

1шт.

1

JR937028

REMAN-ENG OIL PUMP

40XT

1шт.

1

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J905206

TUBE,1" OD

1шт.

4

J938157

GASKET,1.2mm Thk

Mounting

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET Pan Order A77673

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Incl. 4, 7, 9

1шт.

A77490

KIT

Engine Oil Heater; 120V; Order J902425; Incl. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT Engine Oil Heater

1шт.

14

196466A1

ELECTRIC CABLE

Engine Oil Heater, 1829 mm, 72 in.

1шт.

13

J285916

HEATER

240V; Engine Oil Heater

1шт.

14

J905114

ELECTRIC CABLE

1829 mm, 72 in.; Engine Oil Heater; Also Order J902425, Ref 12

1шт.
