(02-11) - OIL FILTER AND COOLER - 4-390 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH 40XT (02-11) - OIL FILTER AND COOLER - 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

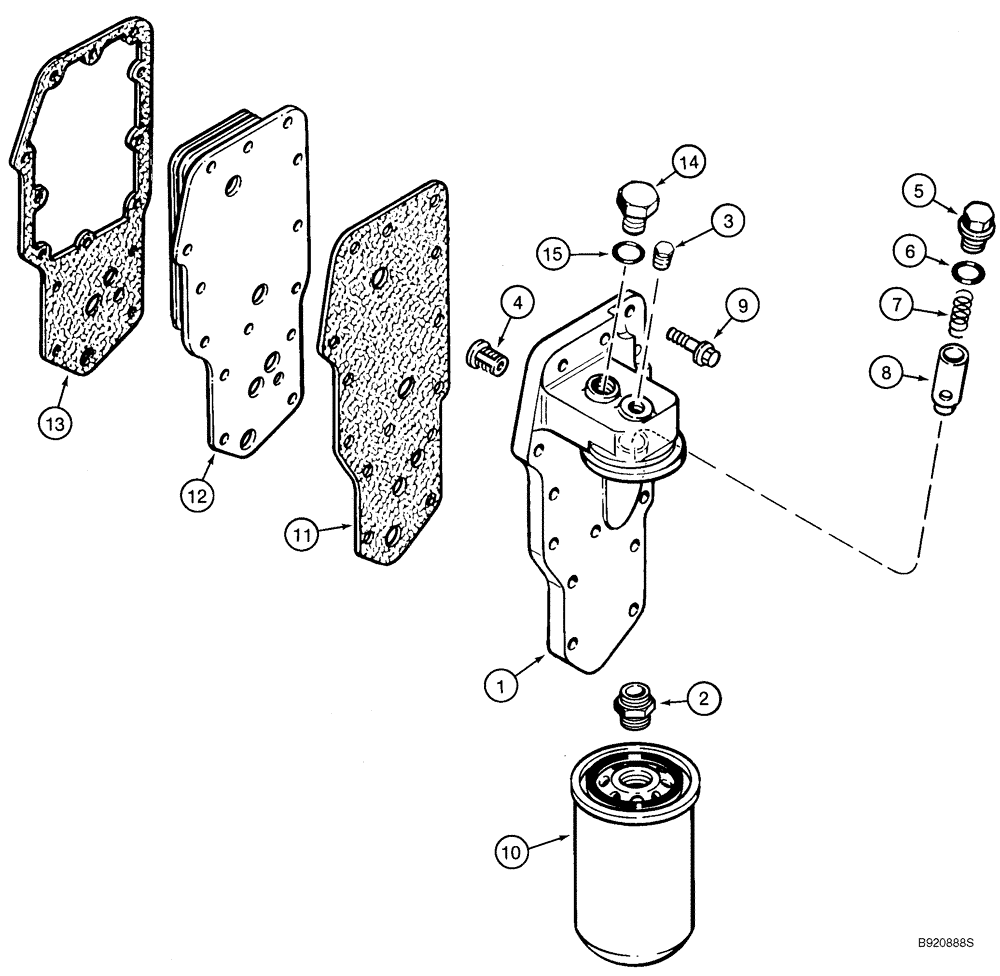

Схема запчастей Case IH 40XT - (02-11) - OIL FILTER AND COOLER - 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
7
15
6
12
13
10
2
1
11
3
9
8
4
5
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J918954

HEAD

Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD

1шт.

2

J909355

ADAPTER

1шт.

3

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

4

J936365

VALVE PRESSURE RELIE

1шт.

5

J915787

PLUG

1шт.

6

J929457

O-RING

23/32 ID x 7/64

1шт.

7

J918427

SPRING

1шт.

8

J918428

PLUNGER

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

Oil

1шт.

10

J934429

ENGINE OIL FILTER

Oil, Premium

1шт.

11

J942915

GASKET

Mounting; Replaces J929792 In Models With Emissions Certified Engines

1шт.

12

87416027

OIL COOLER

Oil; Replaces J921557

1шт.

13

J942914

GASKET

Mounting

1шт.

14

J919686

PLUG

ASSY 12 mm; Incl. 15

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
