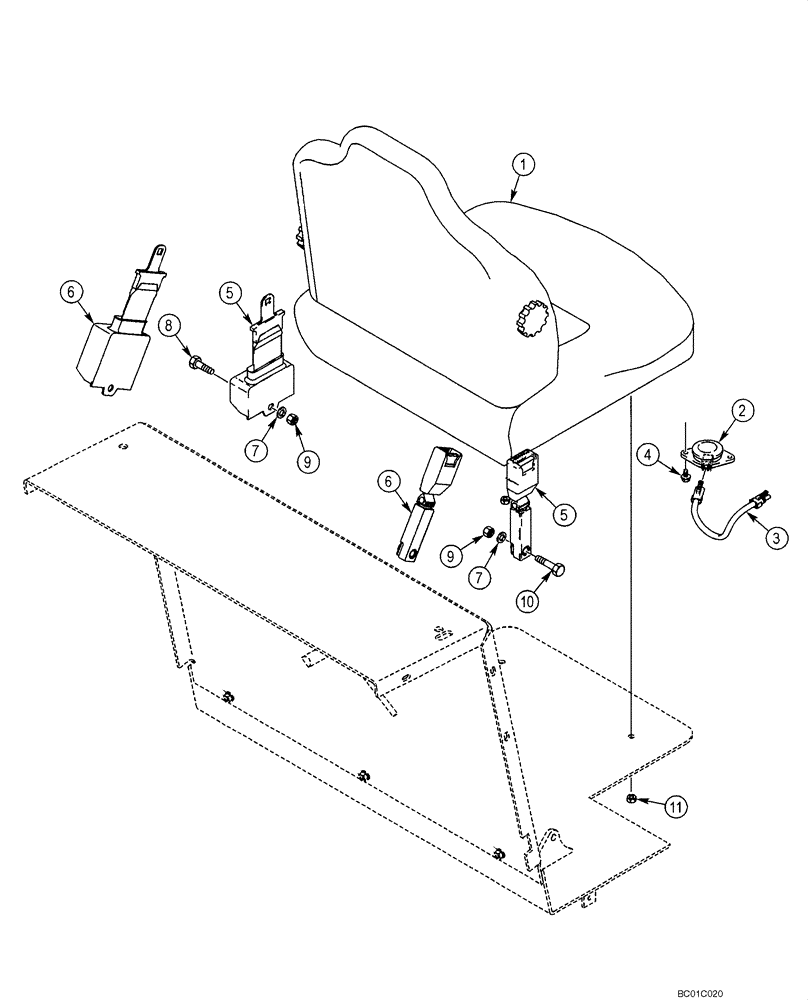

Запчасти Case IH 40XT (09-24) - SEAT - MOUNTING, SUSPENSION (09) - CHASSIS

1

400681A1

SEAT

Incl. 2; Also Incl. Figure 09-24 - 09-24C

1шт.

2

242306A2

SWITCH

Operator Presence

1шт.

3

302137A2

HARNESS

Seat; Two Connector; See Figure 04-15

1шт.

4

NSS

NOT SOLD SEPARAT

Bolt

4шт.

5

249116A1

SAFETY BELT ,50.80 mm W

Includes 6

1шт.

6

249117A1

SAFETY BELT ,76.20 mm W

North American Only

1шт.

7

NSS

NOT SOLD SEPARAT

Washer

2шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

9

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

10

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

11

832-41408

NUT,M8 x 1.25, Cl 10

M8

4шт.
