(09-20) - SOUNDPROOFING, EUROPEAN MODELS, NORTH AMERICAN MODELS WITH HEATER

Запчасти Case IH 40XT (09-20) - SOUNDPROOFING, EUROPEAN MODELS, NORTH AMERICAN MODELS WITH HEATER (09) - CHASSIS

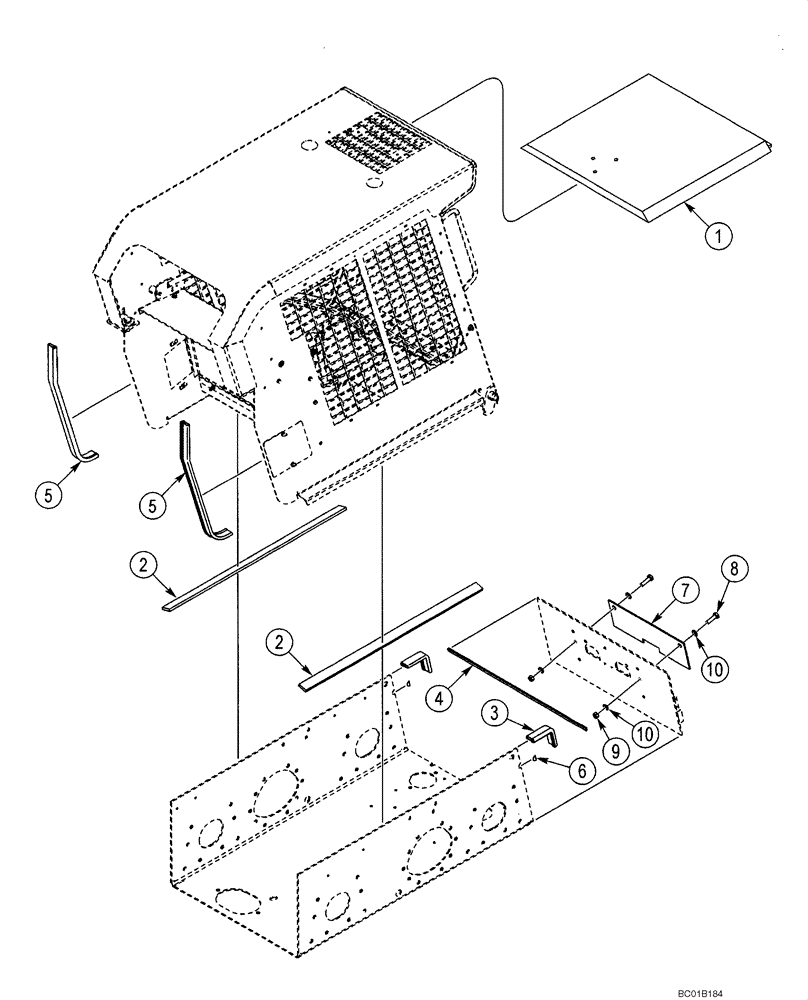

Схема запчастей Case IH 40XT - (09-20) - SOUNDPROOFING, EUROPEAN MODELS, NORTH AMERICAN MODELS WITH HEATER (09) - CHASSIS
2
4
2
6
8
1
10
7
9
5
5
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

372117A4

PANEL

Headliner

1шт.

2

378353A1

WEATHERSTRIP,44.5mm W x 1070mm L x 11.1mm Thk

Side Screen

2шт.

3

381175A2

SEAL

Front Corner

2шт.

4

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

5

394745A2

SEAL,800mm L

ROPS Wing

2шт.

6

394748A1

INSULATION

Relief Cut

2шт.

7

395037A1

PLATE

Cover; If Used

1шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

If Used

2шт.

9

832-41310

NUT,M10 x 1.5, Cl 10

If Used

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

If Used

4шт.
