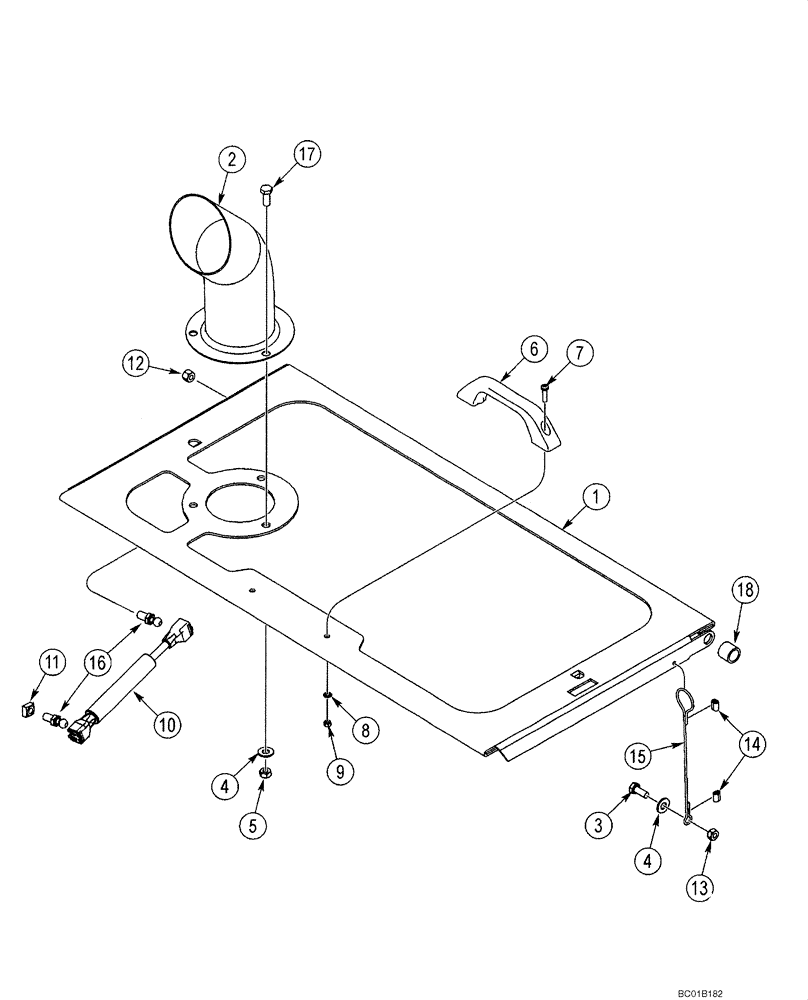

Запчасти Case IH 40XT (09-18) - HOOD (09) - CHASSIS

390846A1

Hood, Engine; Not Available As An Assembly, Order Components; Incl. 1 - 16

1шт.

390846A2

Hood, Engine; Not Available As An Assembly, Order Components; Incl. 1, 2, 4 - 12, 16 - 18

1шт.

1

388063A1

HOOD ASSY.

Engine

1шт.

2

411124A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Exhaust Extension; Part Of 390846A1

1шт.

2

304811A2

TUBE

Exhaust Extension; Part Of 390846A2

1шт.

2

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Replaces 304811A2

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 20 x 1.6 mm

4шт.

5

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

6

406256A1

HANDLE

Hood

1шт.

7

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

8

893-11005

LOCK WASHER,Ext Tooth, M5

2шт.

9

824-1405

NUT,M5, Cl 5

2шт.

10

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

38 mm strk; Spring; Hood Assist

1шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

1шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

13

829-1308

NUT,M8, Cl 10

1шт.

14

297246A1

SLEEVE

See Figure 09-19, Ref 17

2шт.

15

297244A1

CABLE

See Figure 09-19, Ref 17

1шт.

16

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

18

435396A1

SPACER

1шт.
