Запчасти Case IH 40XT (09-09) - BUCKET, CUTTING EDGE (BOLT-ON CUTTING EDGE) (09) - CHASSIS

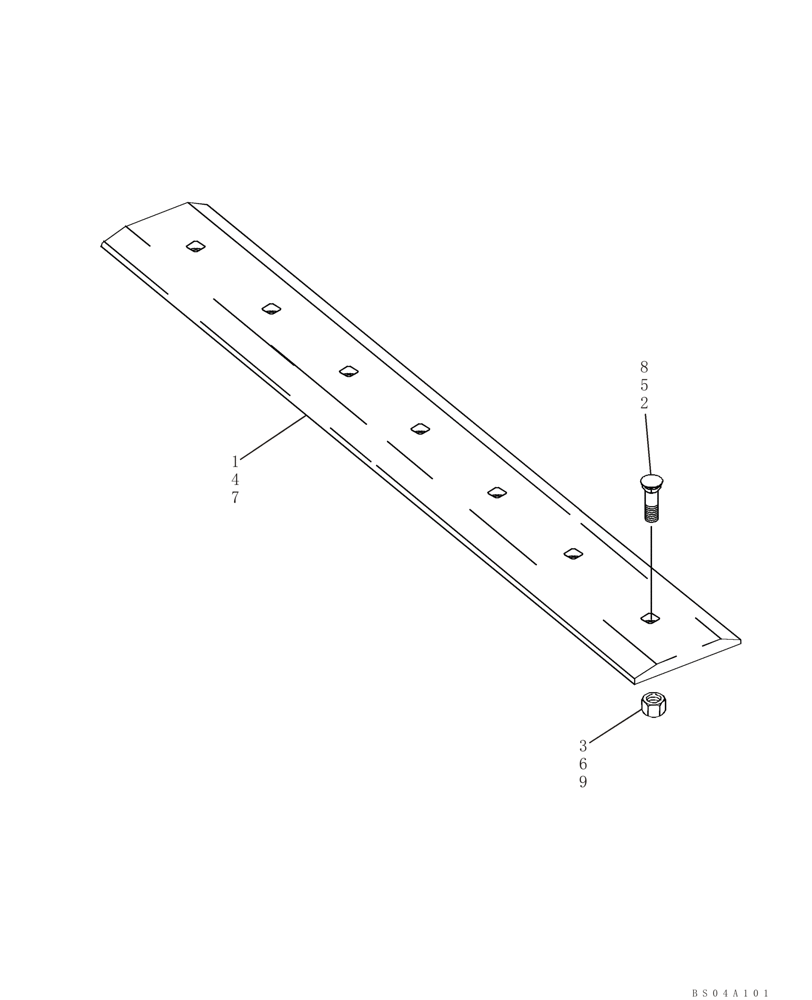

Схема запчастей Case IH 40XT - (09-09) - BUCKET, CUTTING EDGE (BOLT-ON CUTTING EDGE) (09) - CHASSIS
4
bs04a101
3
5
6
1
7
2
8
9

Артикул

Название

Примечание

Количество

1

86577164

CUTTING EDGE

60 in Blade Weld On W/Holes

1шт.

1

86577166

CUTTING EDGE

66 in Blade Weld On W/Holes

1шт.

1

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

72 in Blade Weld On W/Holes

1шт.

1

86577170

CUTTING EDGE,Weld On, 9 Hole, 152.4mm W x 1978.2mm L

78 in Blade Weld On W/Holes

1шт.

1

86577172

CUTTING EDGE,Weld On, 9 Hole, 203.2mm W x 2130.6mm L

84 in Blade, Weld On W/Holes

1шт.

1

9841618

CUTTING EDGE

60 in Blade, Weld On W/O Holes

1шт.

1

9841590

CUTTING EDGE

72 in Blade, Weld On W/O Holes

1шт.

1

86501702

CUTTING EDGE

84 in Blade, Weld On W/O Holes

1шт.

430497A1

EDGE, CUTTING

Kit; Order Components; Incl. 1 - 3, Bolt On W/Holes

1шт.

1

86577165

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1520.8mm L

1524 mm, 60 in., Bolt On W/Holes

1шт.

2

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

3

329-1010

NUT,5/8"-11, G8

7шт.

430498A1

EDGE, CUTTING

Kit; Order Components; Incl. 4 - 6, Bolt On W/Holes

1шт.

4

86577167

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1673.2mm L

1676 mm, 66 in., Bolt On W/Holes

1шт.

5

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

6

329-1010

NUT,5/8"-11, G8

7шт.

430499A1

EDGE, CUTTING

Kit; Order Components; Incl. 7 - 9, Bolt On W/Holes

1шт.

7

86577169

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1825.6mm L

1829 mm, 72 in., Bolt On W/Holes

1шт.

8

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

9

329-1010

NUT,5/8"-11, G8

7шт.

434817A1

EDGE, CUTTING

Kit; Incl. 7 - 9, Bolt On W/Holes

1шт.

7

86577171

CUTTING EDGE,78", Gray

1981.2 mm, 78 in., Bolt On W/Holes

1шт.

8

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

9шт.

9

329-1010

NUT,5/8"-11, G8

9шт.

430500A1

EDGE, CUTTING

Kit; Incl. 7 - 9

1шт.

7

86577173

CUTTING EDGE,Bolt On, 9 Hole, 203.2mm W x 2168.5mm L

2133.6 mm, 84 in.

1шт.

8

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

9шт.

9

329-1010

NUT,5/8"-11, G8

9шт.

Выбрано товаров: 28
