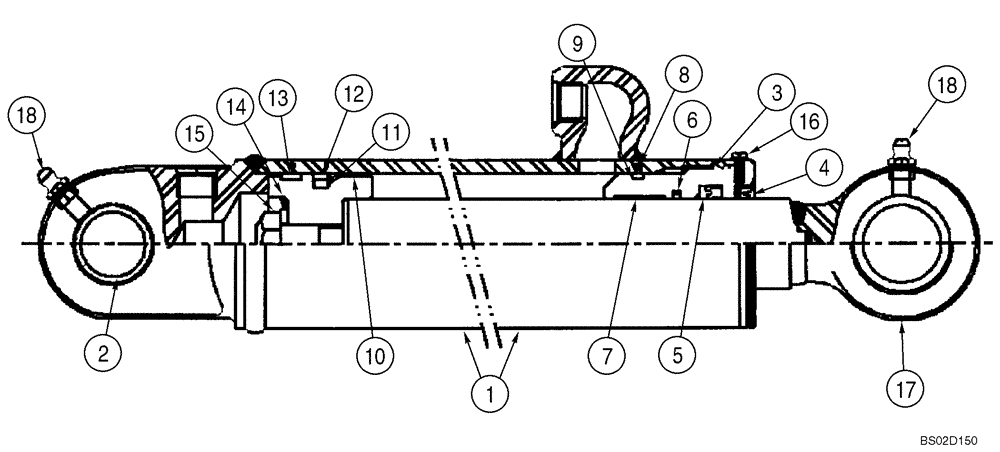

Запчасти Case IH 40XT (08-49) - CYLINDER ASSY - BACKHOE BUCKET (NORTH AMERICA) D125 (08) - HYDRAULICS

REF

INSTRUCTION

D125 BACKHOE

1шт.

402216A1

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 552.4mm Stroke

70 ID x 559 mm strk; 1-3/4 Rod; Bucket; Incl. 1 - 19

1шт.

1

1346398C2

TUBE

Incl. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

41 mm (1-5/8 in)

2шт.

3

431592A1

HEAD (CYLINDER)

Gland, Packing

1шт.

433774A1

SEAL KIT

Package; Incl. 4 - 9, 11 - 13

1шт.

4

431607A1

WIPER

1шт.

5

431595A1

CUP

U-Cup

1шт.

6

431598A1

SEAL

Buffer

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

Wear

1шт.

8

431596A1

BACK-UP RING

1шт.

9

431606A1

O-RING

2-1/2 ID x 1/8

1шт.

10

431591A1

PISTON

1шт.

11

431604A1

EXPANDER

1шт.

12

431605A1

SEAL

Piston

1шт.

13

431602A1

RING

Wear

1шт.

14

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

15

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

16

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

17

431590A1

SHAFT ASSY.

38 mm (1-1/2 in)

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
