Запчасти Case IH 40XT (08-42) - HYDRAULIC SYSTEM - BACKHOE SWING CYLINDER (D125) (08) - HYDRAULICS

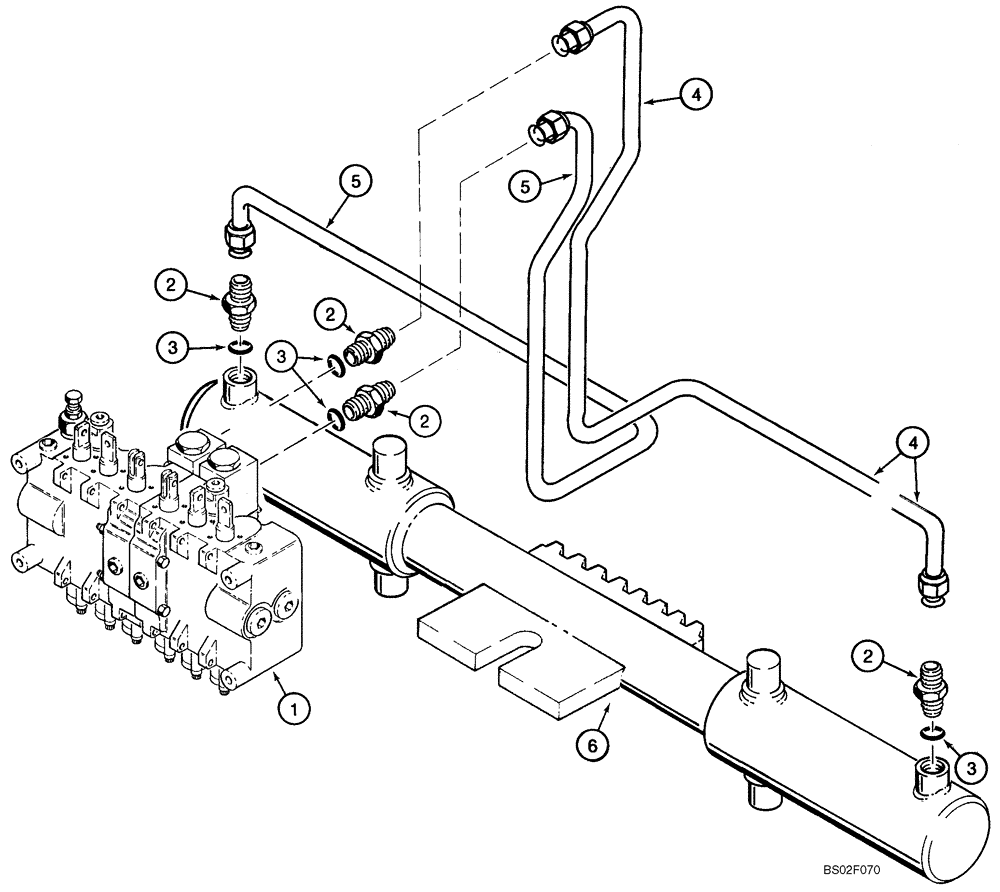

Схема запчастей Case IH 40XT - (08-42) - HYDRAULIC SYSTEM - BACKHOE SWING CYLINDER (D125) (08) - HYDRAULICS
2
4
5
2
6
3
3
1
4
2
3
2
5

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

D125 BACKHOE

1шт.

1

H674500

VALVE

Control; Backhoe; See Figure 08-43 - 08-45

1шт.

1

87400034

VALVE

Control; Backhoe; See Figure 08-43 - 08-45

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

256126A1

TUBE,590, 493 mm Length

Right Hand

1шт.

5

256128A1

TUBE,480, 413 mm Length

Left Hand

1шт.

6

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

70 ID x 254 mm strk; Swing; See Figure 08-46

1шт.

Выбрано товаров: 8
