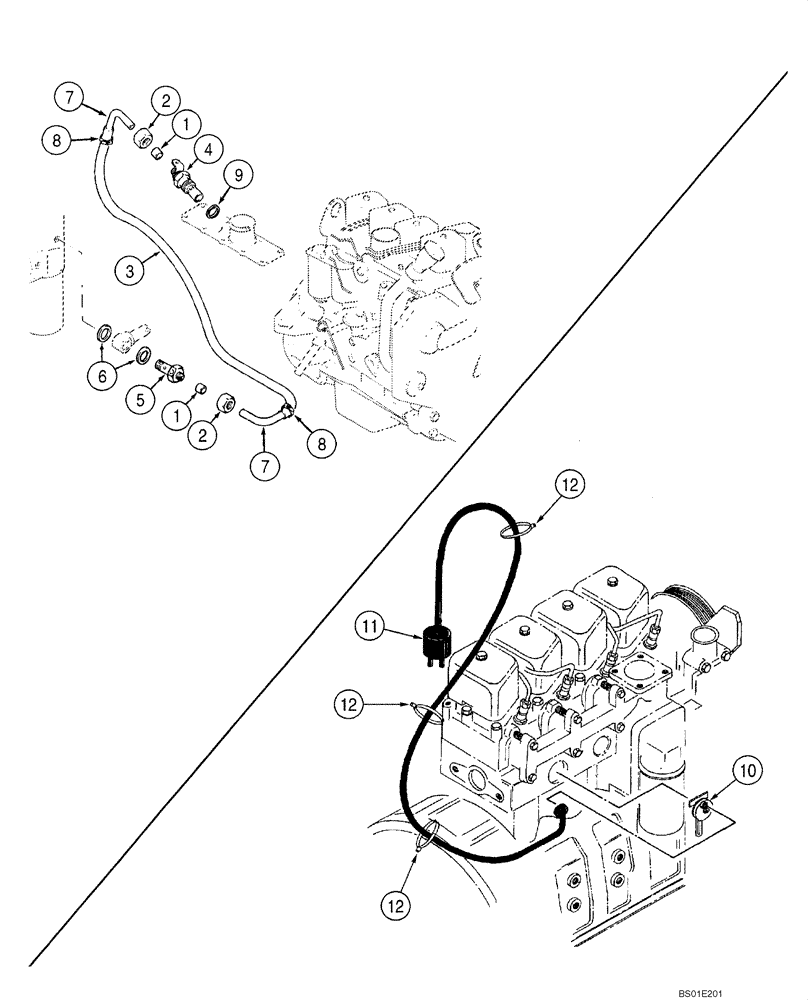

Запчасти Case IH 40XT (02-06) - COLD START - THERMOSTART (02) - ENGINE

1

A77613

SEAL

2шт.

2

114612A1

TUBE NUT

2шт.

3

119882A1

TUBE

230 mm, 9-1/8 in.

1шт.

4

A77616

GLOW PLUG

1шт.

5

A189226

BANJO BOLT

1шт.

6

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm; Replaces J935171

2шт.

7

119881A1

TUBE,4.76 mm OD, 42, 42 mm Length

2шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

9

J906773

WASHER

1шт.

223838A1

CONTROL

Rocker; Ether Start; See Fig. 04-26

1шт.

10

J916662

UNIT HEATER

240V, Cold Start Aid; European Models

1шт.

11

112837A1

PLUG

Cold Start Aid; European Models

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in., Cold Start Aid; European Models

3шт.
