Запчасти Case IH 40XT (08-31) - HYDRAULIC SYSTEM - BACKHOE SWING CYLINDER (D100) (08) - HYDRAULICS

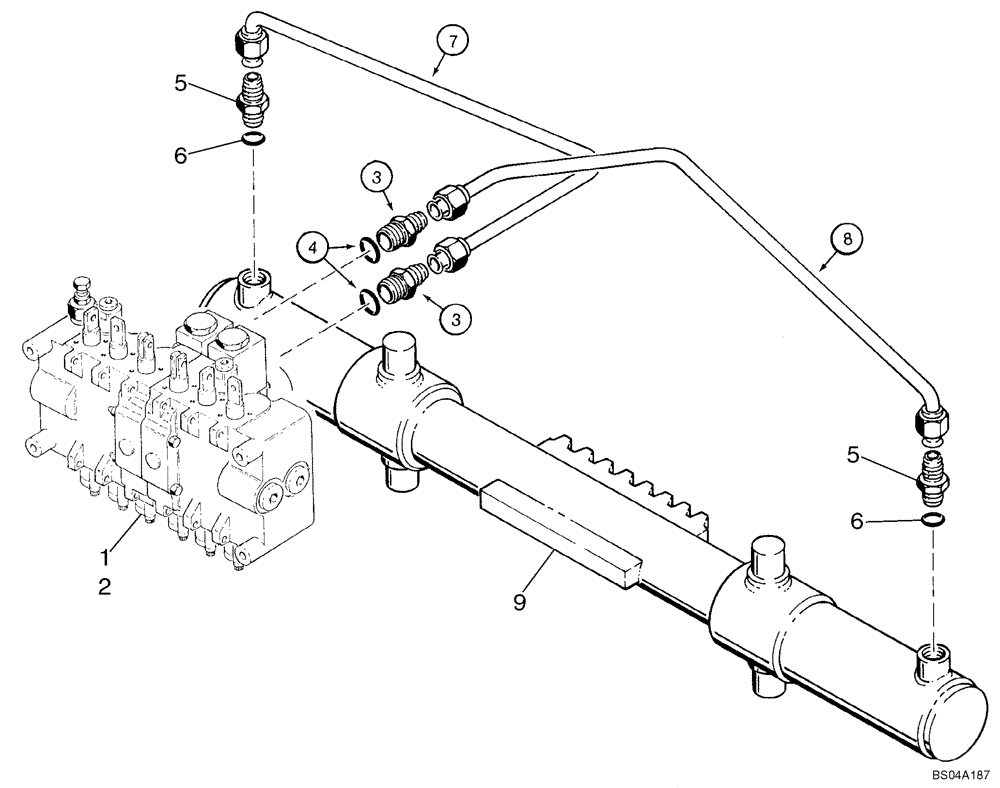

Схема запчастей Case IH 40XT - (08-31) - HYDRAULIC SYSTEM - BACKHOE SWING CYLINDER (D100) (08) - HYDRAULICS
2
6
5
3
8
1
7
5
3
6
4
9

Артикул

Название

Примечание

Количество

1

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-32 - 08-34

1шт.

2

87400023

VALVE

Control; Backhoe; Replaces H674300; Incl. Figure 08-32 - 08-34

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

O-ring boss; Incl. 6

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

O-ring boss; Incl. 10

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H674419

TUBE,0.5" OD

Swing Cylinder; Left Hand Side

1шт.

8

H674420

TUBE,0.5" OD

Swing Cylinder; Right Hand Side

1шт.

9

384865A1

CYLINDER ASSY.

2-3/4 (70) ID x 8 in (203 mm); See Figure 08-35

1шт.

Выбрано товаров: 9
