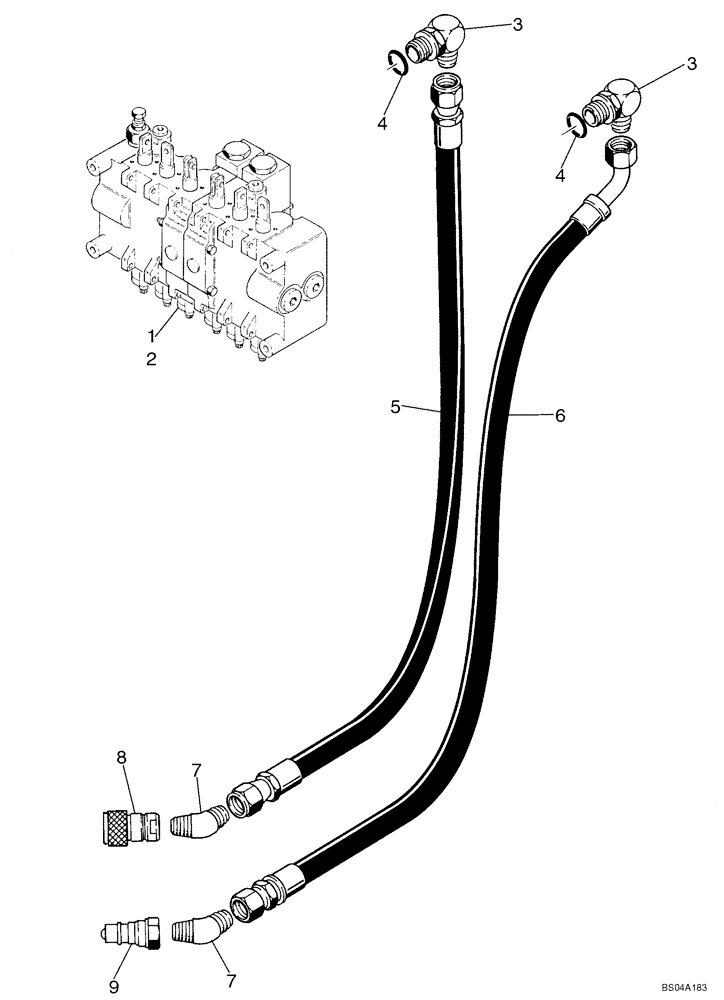

Запчасти Case IH 40XT (08-26) - HYDRAULIC SYSTEM - BACKHOE SUPPLY AND RETURN (D100) (08) - HYDRAULICS

1

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-32 - 08-34; No Longer Available, Order 87400023

1шт.

2

87400023

VALVE

Control; Backhoe; Replaces H674300; Incl. Figure 08-32 - 08-34

1шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree 7/8-14 in flare x adj; O-ring boss; Incl. 6

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

L46723

HOSE

42 in (1067 mm); Supply

1шт.

6

D137255

HOSE ASSY.

45-1/4 in (1150 mm); Return

1шт.

7

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree 7/8-14 flare x 1/2 in PT

2шт.

8

238243A1

COUPLING, BREAK AWAY

Quick Disconnect; Male

1шт.

9

143431A1

COUPLING, QUICK, FEM

Quick Disconnect; Female

1шт.
