Запчасти Case IH 40XT (08-22) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

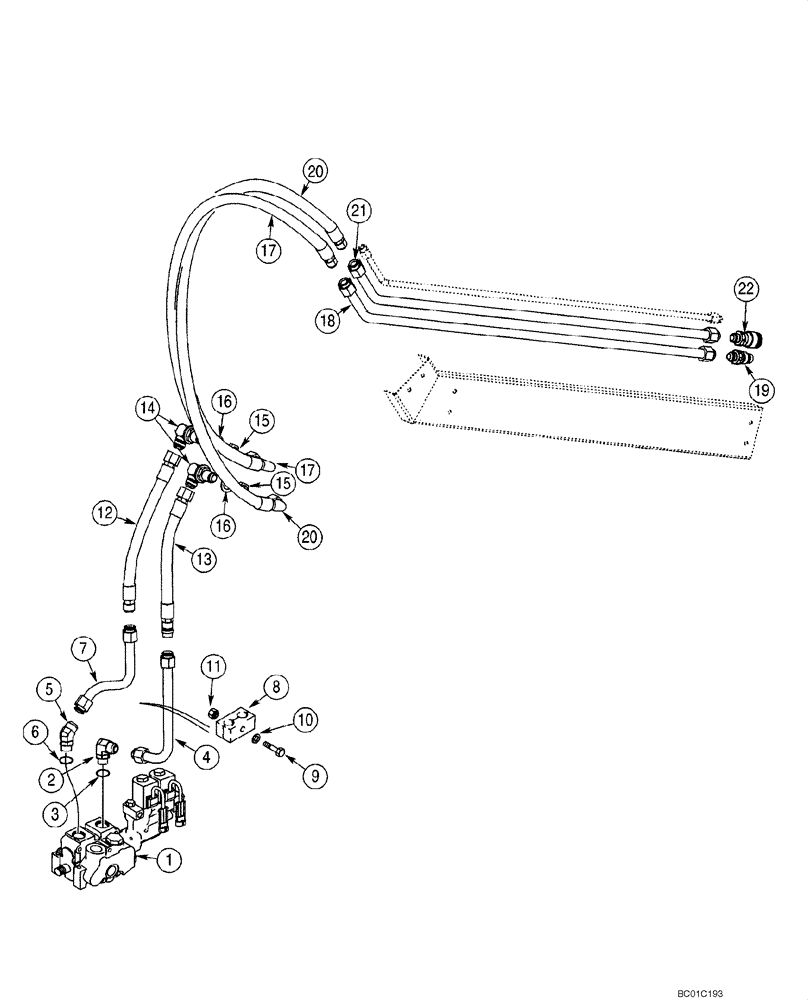

Схема запчастей Case IH 40XT - (08-22) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS
16
11
9
21
15
20
22
12
20
19
15
5
16
3
18
1
2
7
17
6
10
4
8
13
14
17

Артикул

Название

Примечание

Количество

1

372194A2

VALVE

Control, High Flow; See Figure 08-25

1шт.

2

430014A1

ELBOW

1 x 3/4, 90°; Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

392450A1

TUBE,25.4 mm OD

Front Port

1шт.

5

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adj Or, Incl. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

392448A1

TUBE

Rear Port

1шт.

8

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in. ID

1шт.

9

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

832-41408

NUT,M8 x 1.25, Cl 10

M8

1шт.

12

392445A2

HOSE ASSY.

492 mm, 19-3/8 in.; Rear Port

1шт.

13

392446A2

RADIATOR HOSE,422.00 mm

Front Port

1шт.

14

407923A1

FITTING

Bulkhead

2шт.

15

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

16

495-81278

WASHER,33.53mm ID x 50.8mm OD x 3.35mm Thk

1-5/16 x 2 x 7/64

2шт.

17

407202A2

HOSE ASSY.

1385 mm, 54-1/2 in.; High Flow Loop

1шт.

18

406931A1

TUBE

Supply

1шт.

19

395268A1

COUPLING

Hydraulic, Male Quick Disconnect

1шт.

20

407201A2

HOSE ASSY.

1385 mm 54-1/2 in.

1шт.

21

406929A1

TUBE

Supply

1шт.

22

395267A1

COUPLING

Hydraulic, Female Quick Disconnect

1шт.

Выбрано товаров: 22
